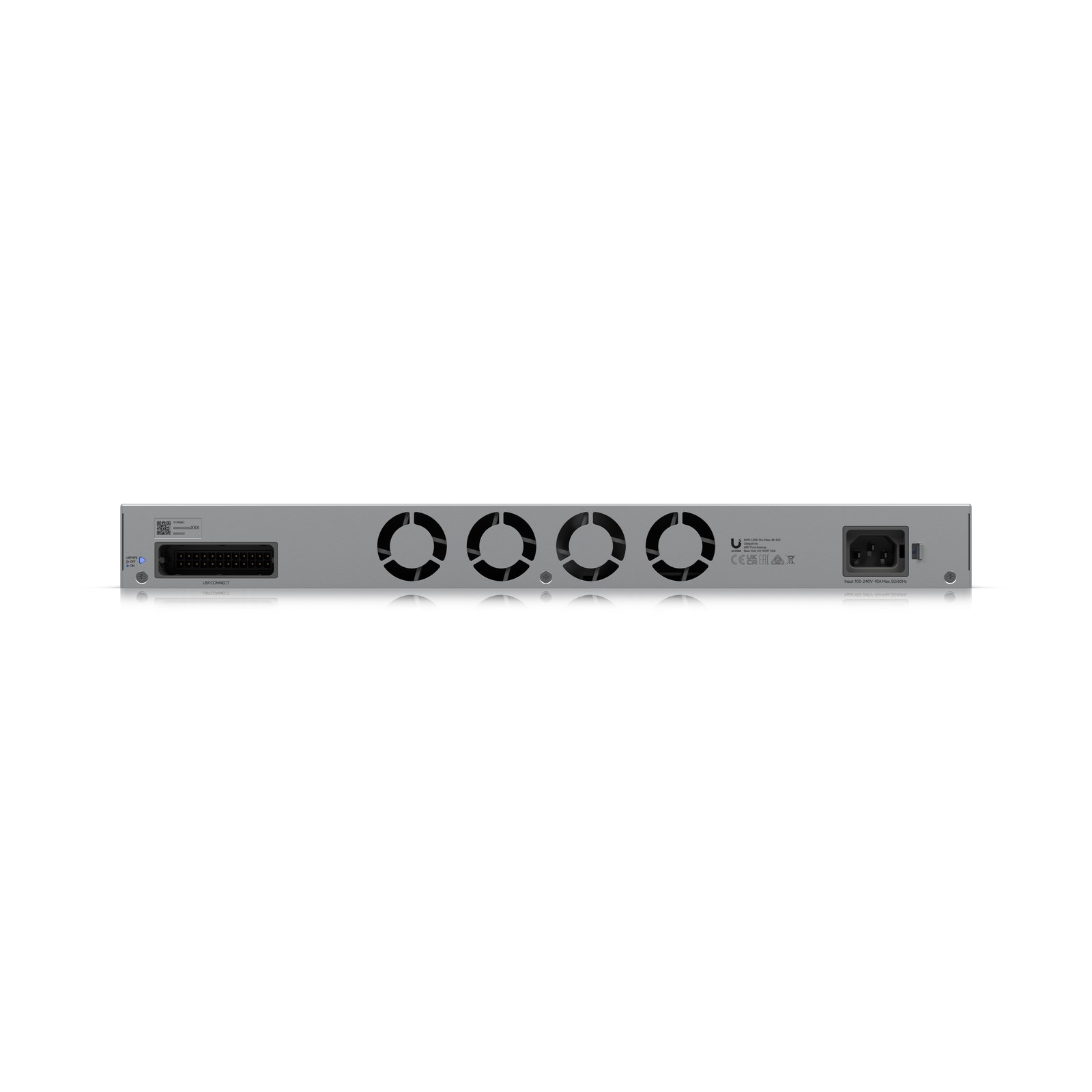

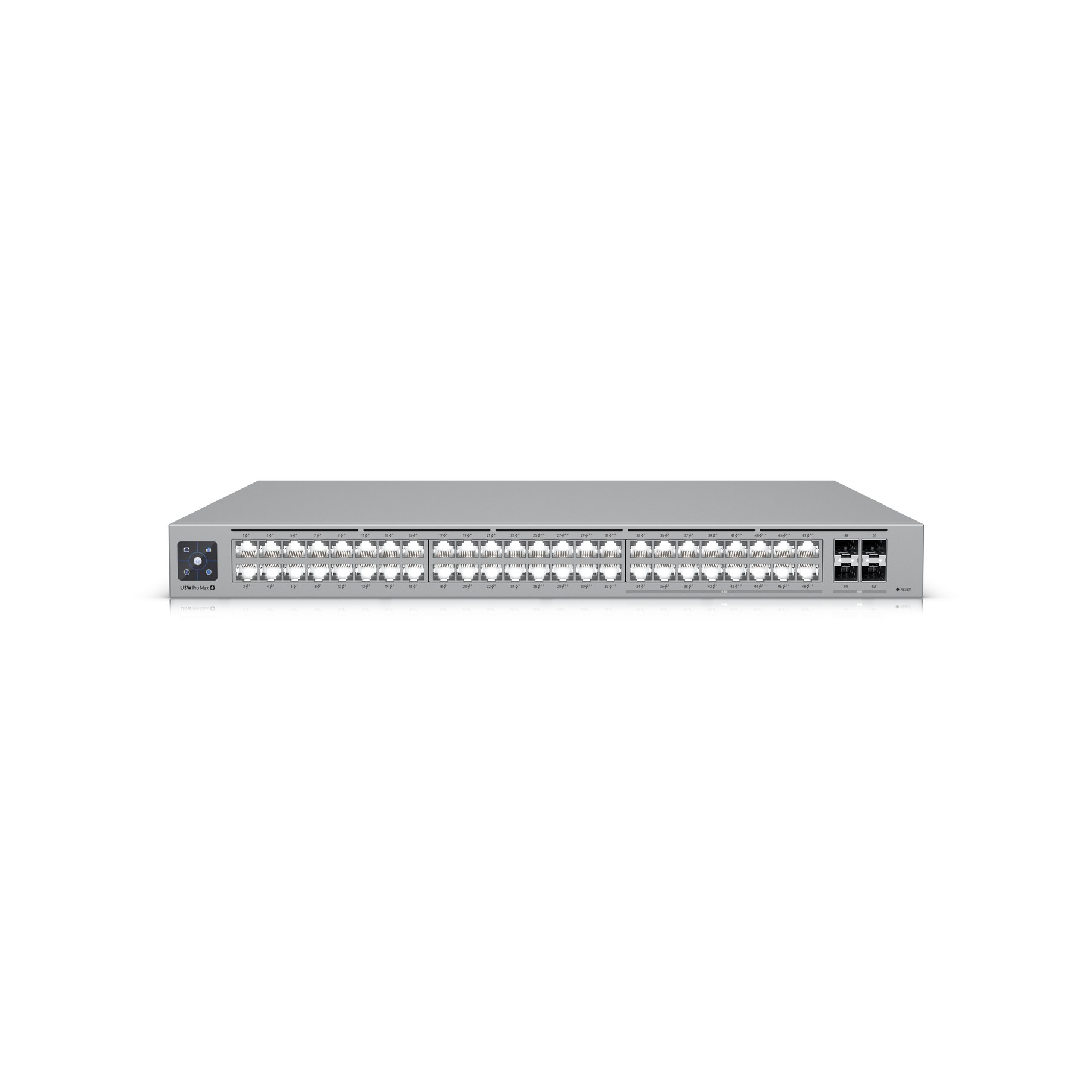

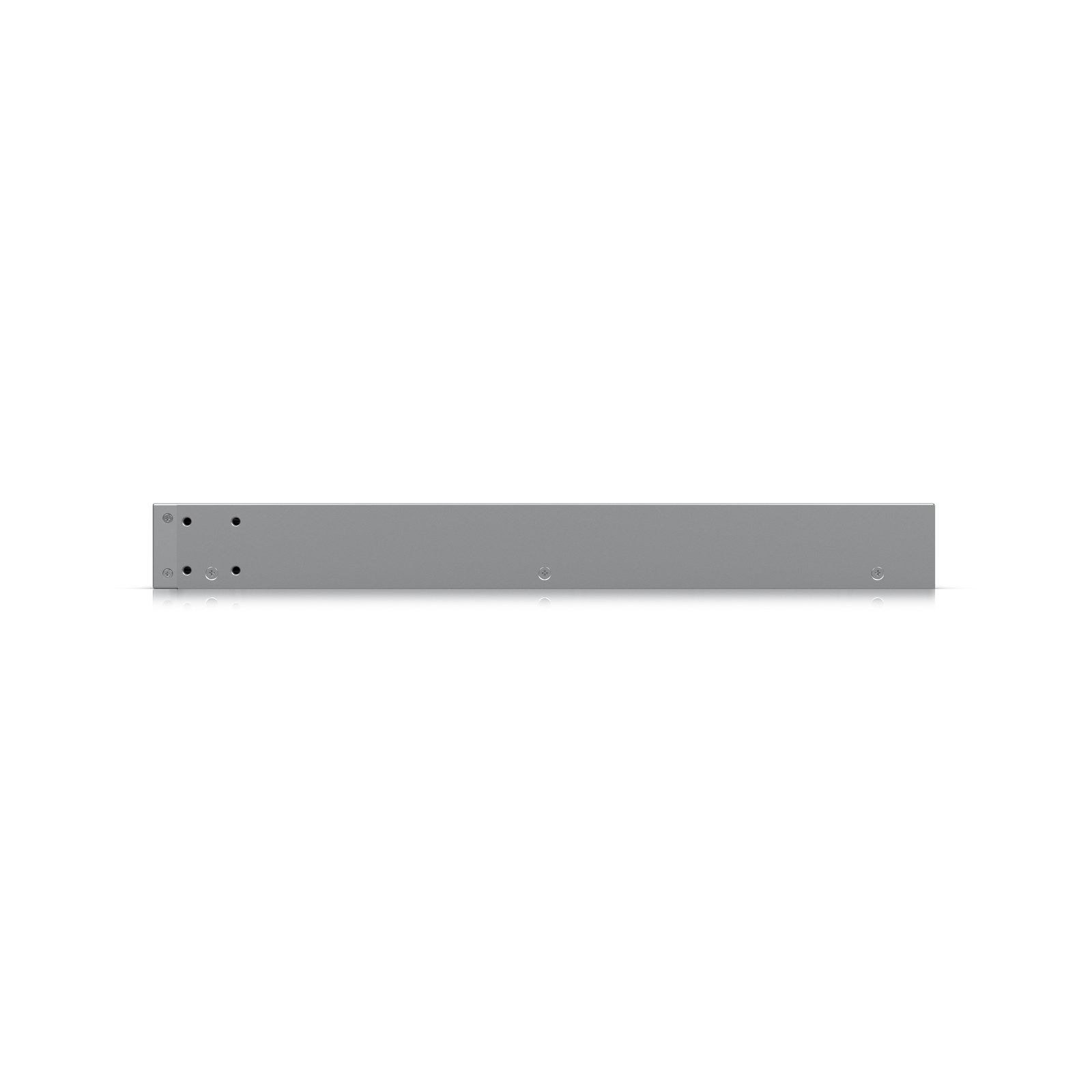

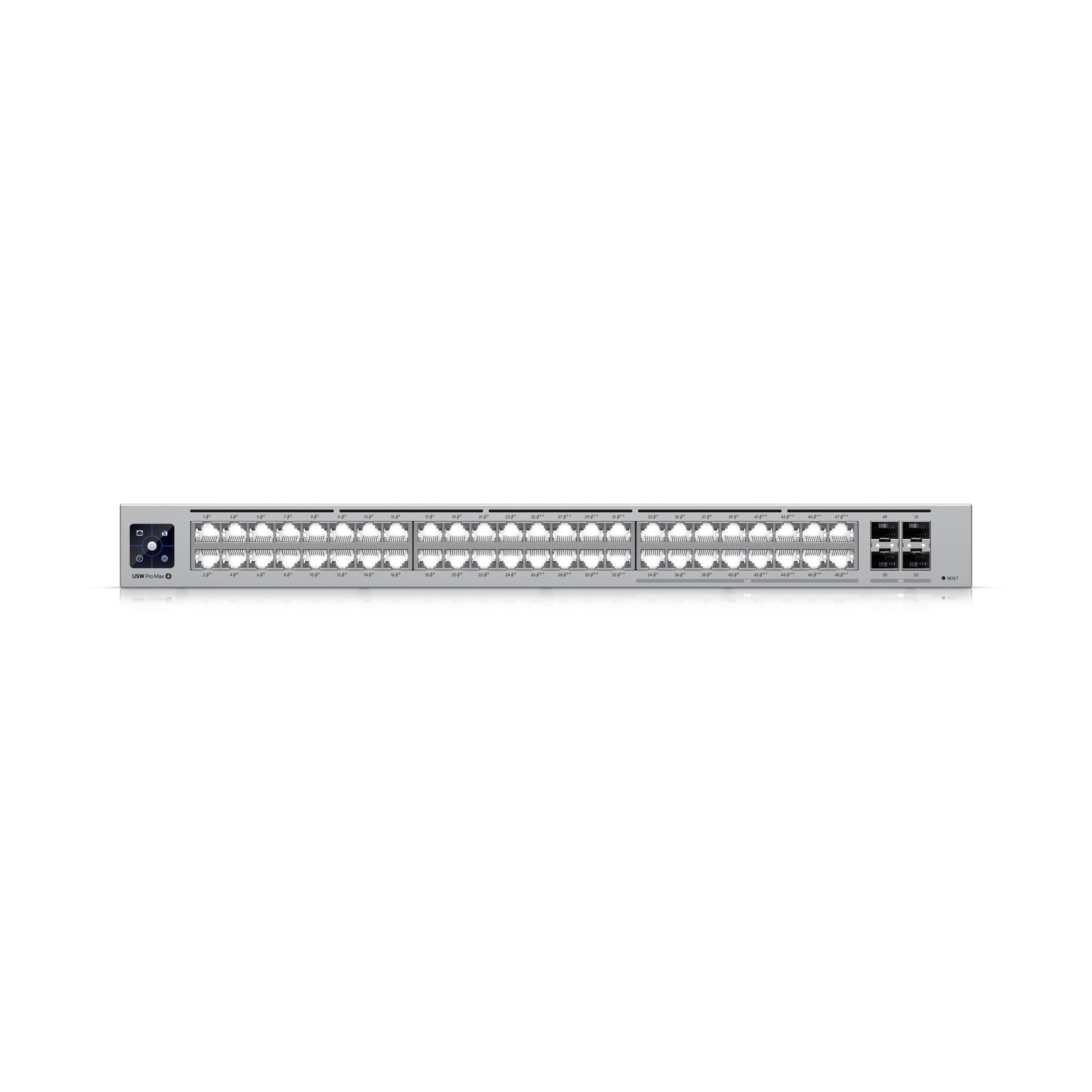

Ubiquiti USW-Pro-Max-48-PoE UniFi managed switch • 48 porti, 720 W PoE++ • 19-inch rack 1U
€1,553.56
Not in the Tallinn warehouse right now — shipped from the Baltic warehouse, delivery usually 1–3 working days.
- Ordered before 14:00 from our Tallinn warehouse — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Ubiquiti USW-Pro-Max-48-PoE UniFi managed switch • 48 porti, 720 W PoE++ • 19-inch rack 1U"
Ubiquiti USW-Pro-Max-48-PoE is a UniFi managed switch — 48 porti, 720 W PoE++, 19-inch rack 1U. Enough for a large camera fleet and access points.
Key Advantages and Features:
- 720 W PoE budget: Enough for a large camera fleet and access points.
- 16 x 2.5 GbE: Half the ports are above gigabit — new APs run at full speed.
- 224 Gbps switching capacity: Not a bottleneck even when fully loaded.
- Power redundancy: USP-RPS input.
- Managed in UniFi: VLANs, port settings and statistics in the same place as the rest of the UniFi network.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | 442.4 x 400 x 44 mm, (17.4 x 15.7 x 1.7") |
| 1 GbE RJ45 | 32 (24 PoE+; 8 PoE++), (1G/100M/10M) |
| 2.5 GbE RJ45 | 16 (8 PoE+; 8 PoE++), (2.5G/1G/100M/10M) |
| 10G SFP+ | 4, (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | jah |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | jah |
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
| PoE+ | 32 |
| PoE++ | 16 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 100W (Excluding PoE Output), 820W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz, (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, AR |
| Heat Dissipation | 341.2 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb), With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm, (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | jah |
The switch needs a UniFi controller (Cloud Gateway, Dream Machine or UniFi Express). The device is part of UniFi: management, users and configuration live in one interface together with the rest of the UniFi network, cameras and access control. No subscription or cloud licence.
| PoE: | With PoE |
|---|---|
| Ports: | 48 |
Ubiquiti – radio links and UniFi networks
Ubiquiti is best known for its wireless products: airMAX and airFiber links take the network where cable cannot go. The UniFi line applies the same logic to wired networking and Wi-Fi.
Why Ubiquiti?
A radio link instead of cable – you can connect two buildings or yards without digging. In surveillance this is often the only sensible way to get a distant camera back to the recorder.
Unified UniFi management – access points, switches and routers in one controller, with a network map and monitoring.
Built for outdoors – most of the radio hardware is designed for a mast or a wall and copes with a Nordic climate.
We stock both point-to-point links and UniFi network gear. With any radio link, remember it needs line of sight — if there is forest or a building in the way, a stronger antenna will not fix it.
