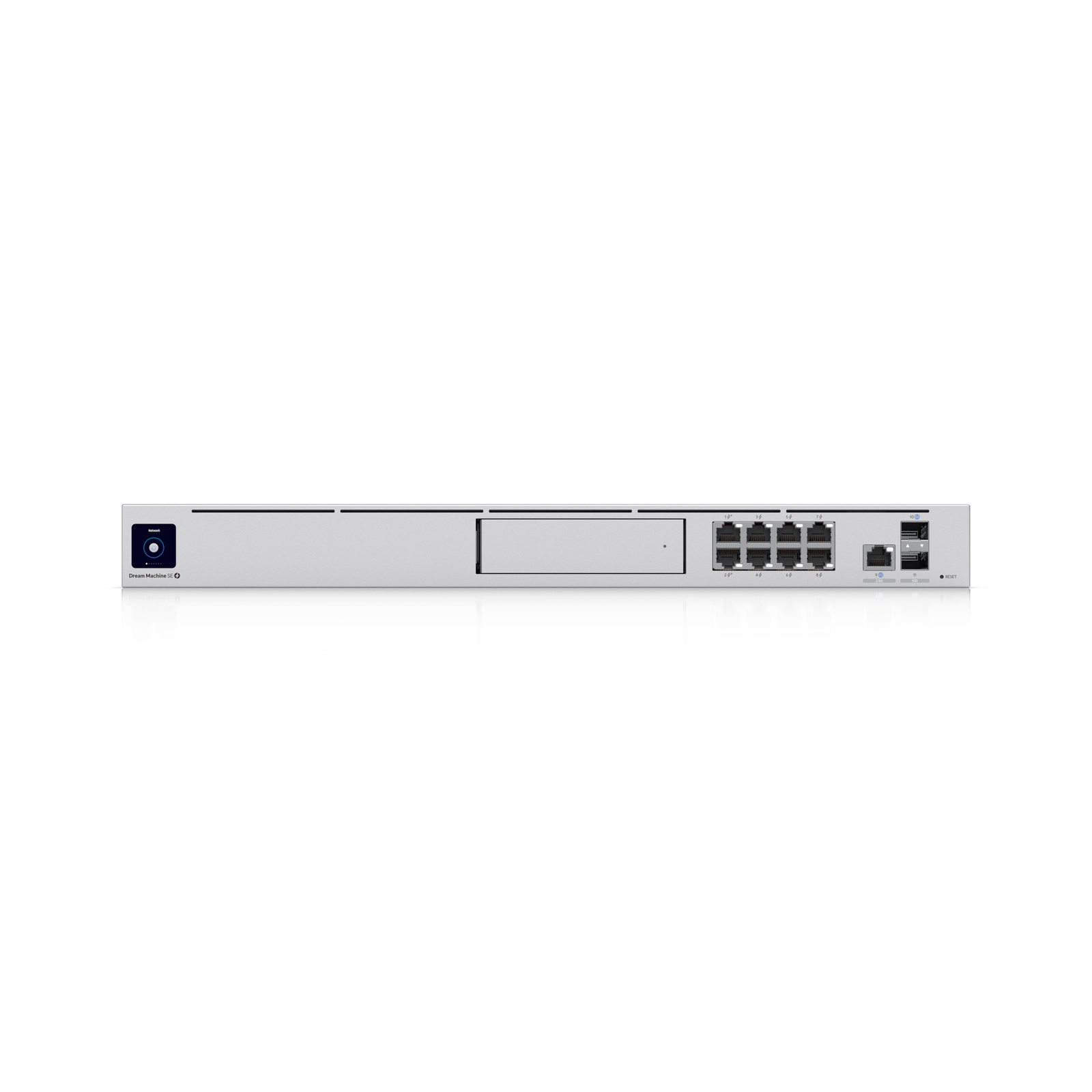

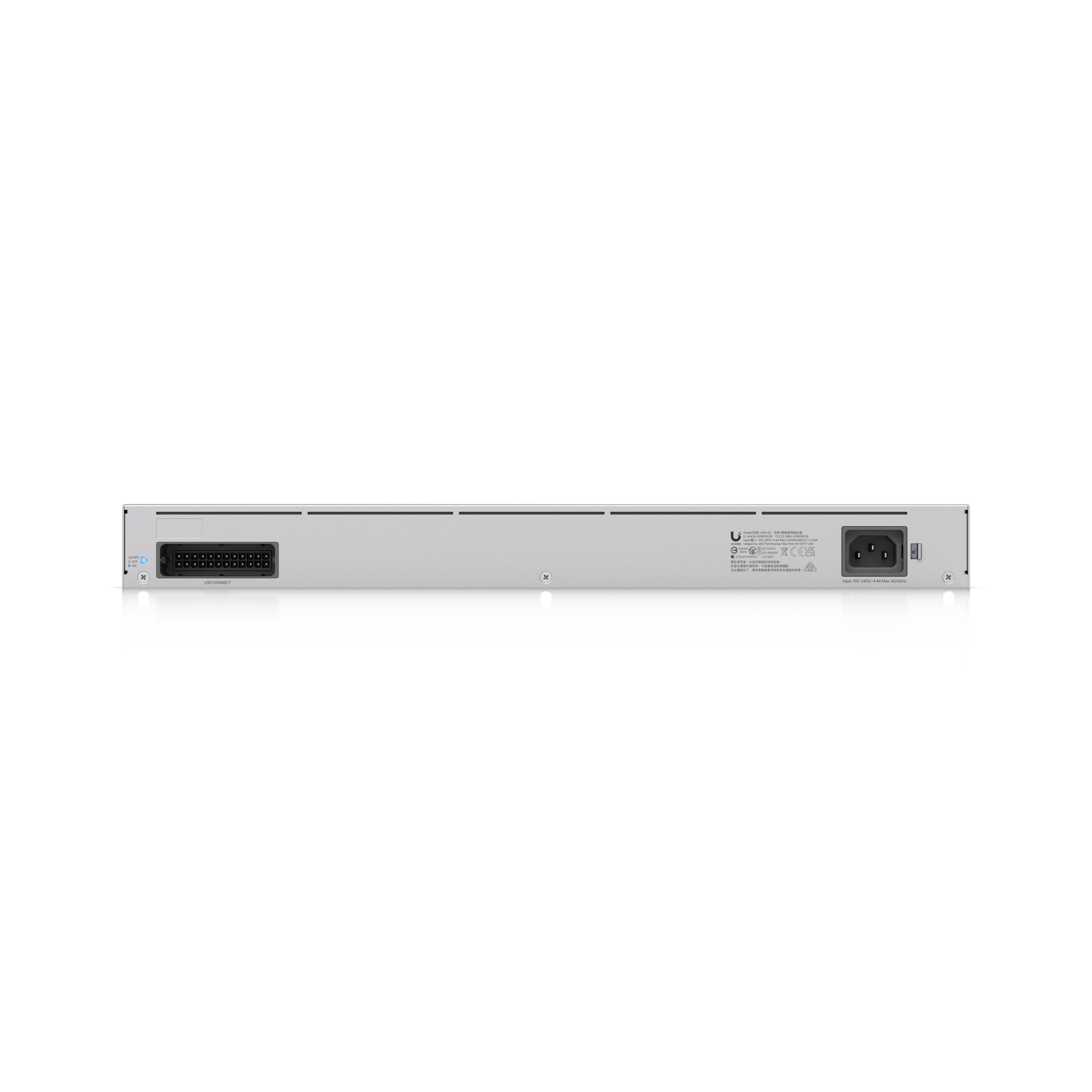

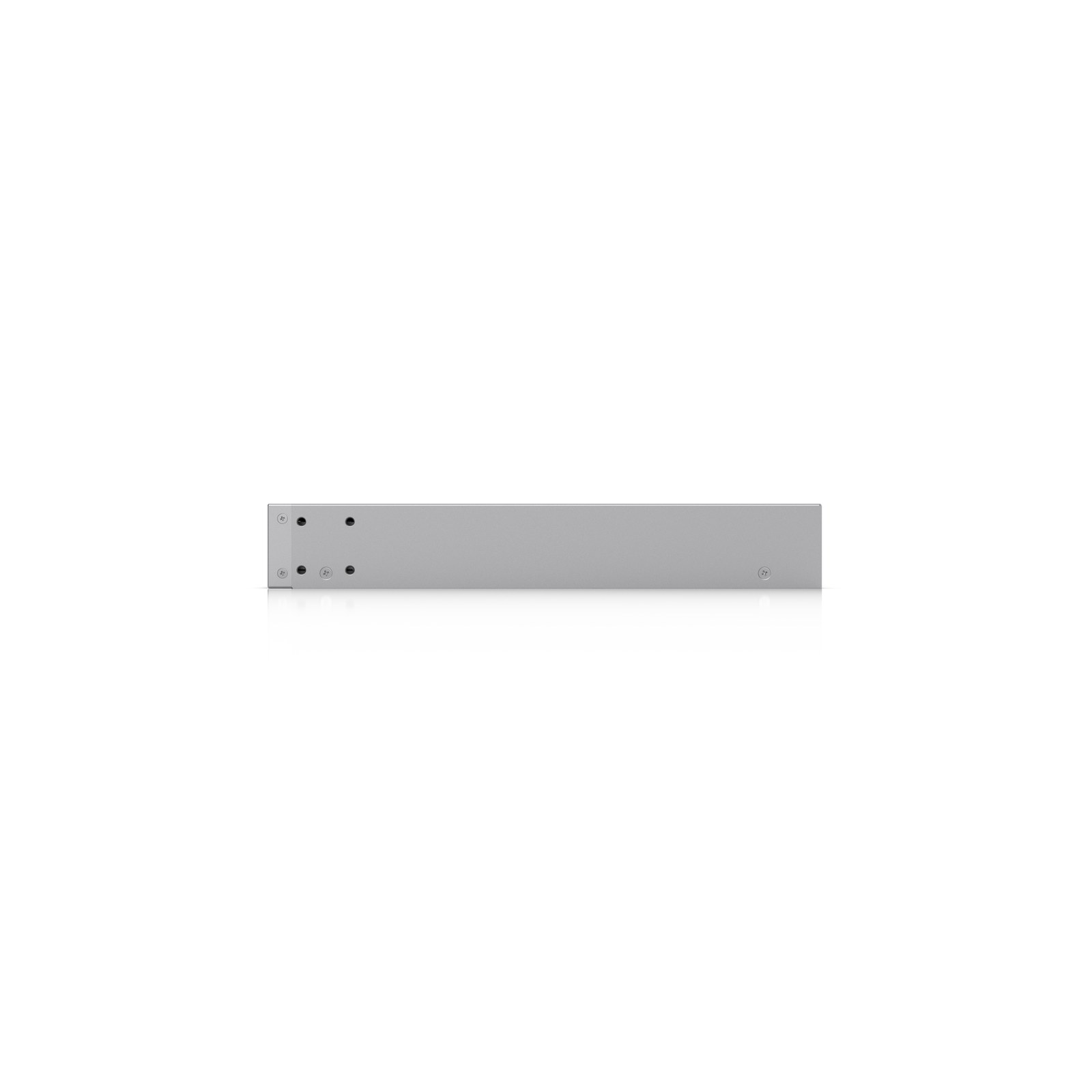

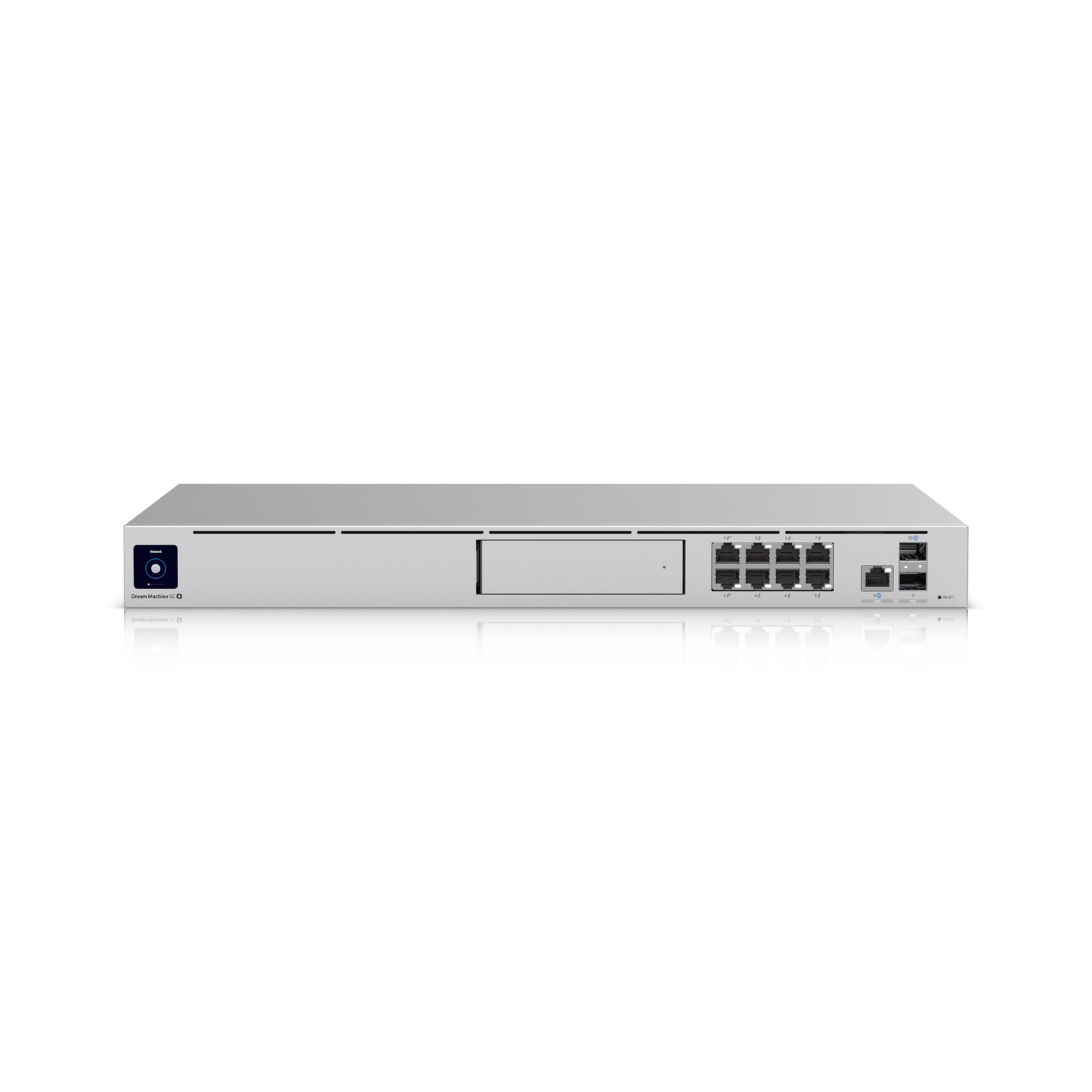

Ubiquiti UDM-SE gateway • 8 PoE ports (180 W) • UniFi Protect up to 14 cameras • drive bay • 1U
€621.24
Not in the Tallinn warehouse right now — shipped from the Baltic warehouse, delivery usually 1–3 working days.
- Ordered before 14:00 from our Tallinn warehouse — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Ubiquiti UDM-SE gateway • 8 PoE ports (180 W) • UniFi Protect up to 14 cameras • drive bay • 1U"
Ubiquiti UDM-SE is a gateway with a PoE switch built in — 180 W covers cameras and access points without a separate switch. Plus router, firewall, UniFi controller and video recorder.
Key Advantages and Features:
- PoE built in: 8 PoE/PoE+ ports, 180 W total.
- Five roles in one: Router, firewall, switch, controller and recorder.
- 3.5 Gbps IDS/IPS: Intrusion detection without a speed penalty.
- Up to 14 cameras: 24 HD, 14 2K or 8 4K cameras.
- Built-in drive bay: Video recording in the same unit.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm, (17.4 x 1.7 x 11.2") |
| Network | jah |
| Protect | jah |
| Access | jah |
| Talk | jah |
| Connect | jah |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD, (14) 2K, (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| 1 GbE RJ45 | 8, (1G/100M/10M) |
| 2.5 GbE RJ45 | 1, (2.5G/1G/100M/10M) |
| 10G SFP+ | 2, (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover, DC Power Backup |
| NVR Storage | (1) 3.5" NVR HDD bay, Built-in 128 GB SSD for Faster Experience |
| PoE Budget | 180W |
| PoE | 15.4W |
| PoE+ | 30W |
| Voltage Range PoE Mode | PoE: 44-57V, PoE+: 50-57V |
| Max. Power Consumption | 50W (Excluding PoE Output) |
| Power Method | (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz, (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 170 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC, 128 GB SSD (Integrated) |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet, Bluetooth |
| Ethernet | jah |
| SFP+ | jah |
| RPS | jah |
| PSU | jah |
Suits a small office or home where one box should do everything. For a larger camera fleet see the UDM-Pro-Max. The device is part of UniFi: management, users and configuration live in one interface together with the rest of the UniFi network, cameras and access control. No subscription or cloud licence.
| Network device type: | Router |
|---|---|
| PoE: | With PoE |
Ubiquiti – radio links and UniFi networks
Ubiquiti is best known for its wireless products: airMAX and airFiber links take the network where cable cannot go. The UniFi line applies the same logic to wired networking and Wi-Fi.
Why Ubiquiti?
A radio link instead of cable – you can connect two buildings or yards without digging. In surveillance this is often the only sensible way to get a distant camera back to the recorder.
Unified UniFi management – access points, switches and routers in one controller, with a network map and monitoring.
Built for outdoors – most of the radio hardware is designed for a mast or a wall and copes with a Nordic climate.
We stock both point-to-point links and UniFi network gear. With any radio link, remember it needs line of sight — if there is forest or a building in the way, a stronger antenna will not fix it.
