Product "Ubiquiti UACC-Lock-Strike-Secure elektriline vasturaud • 15 mm"

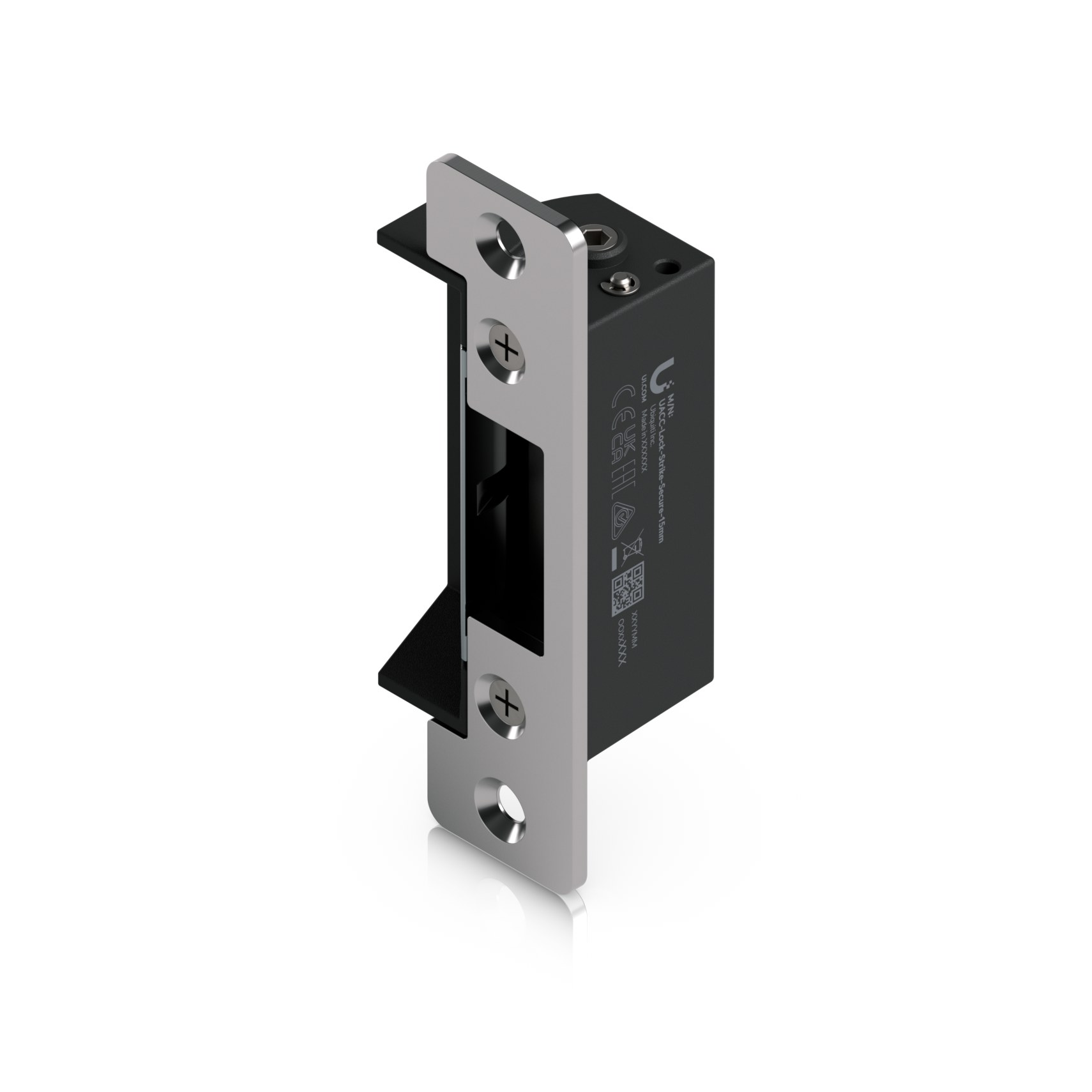

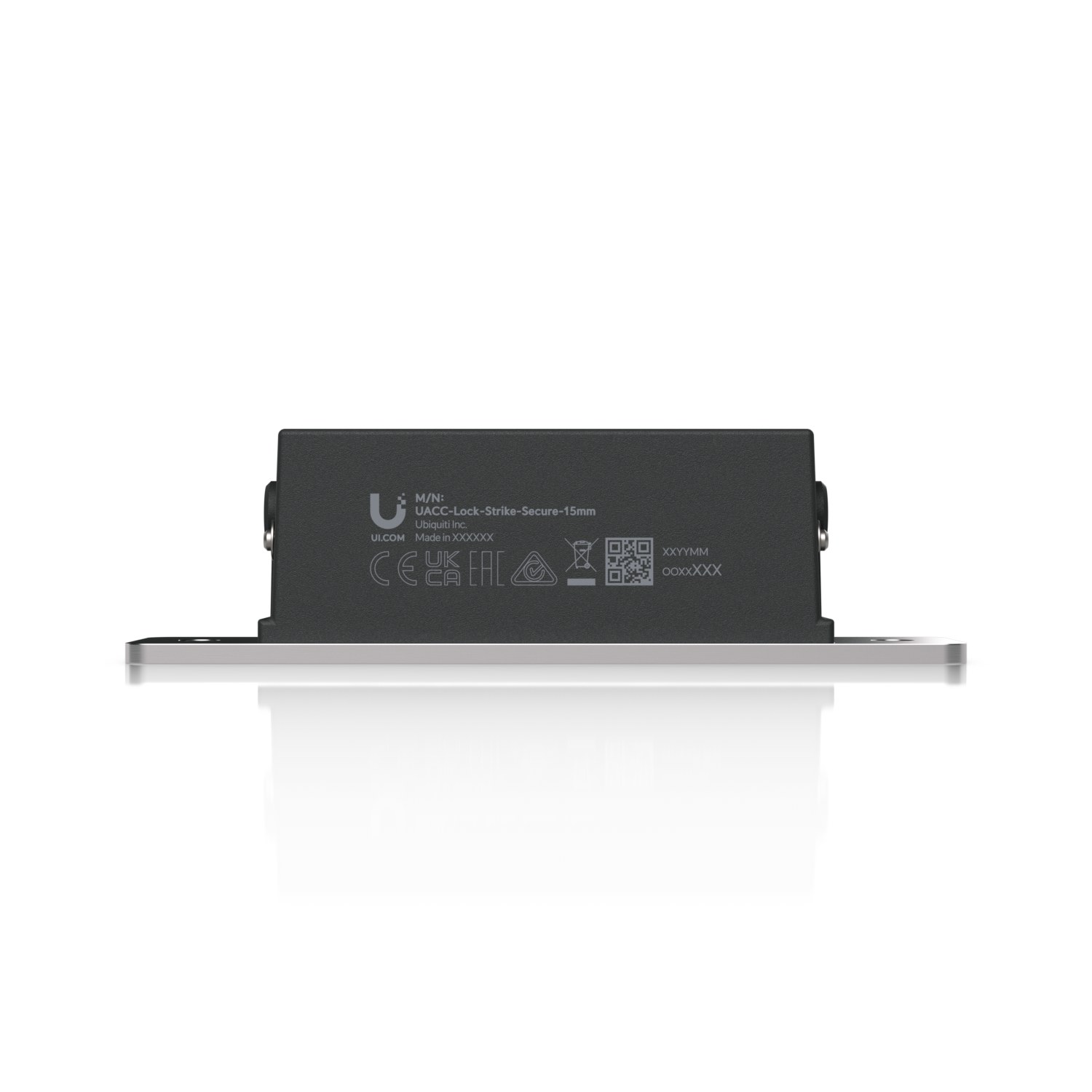

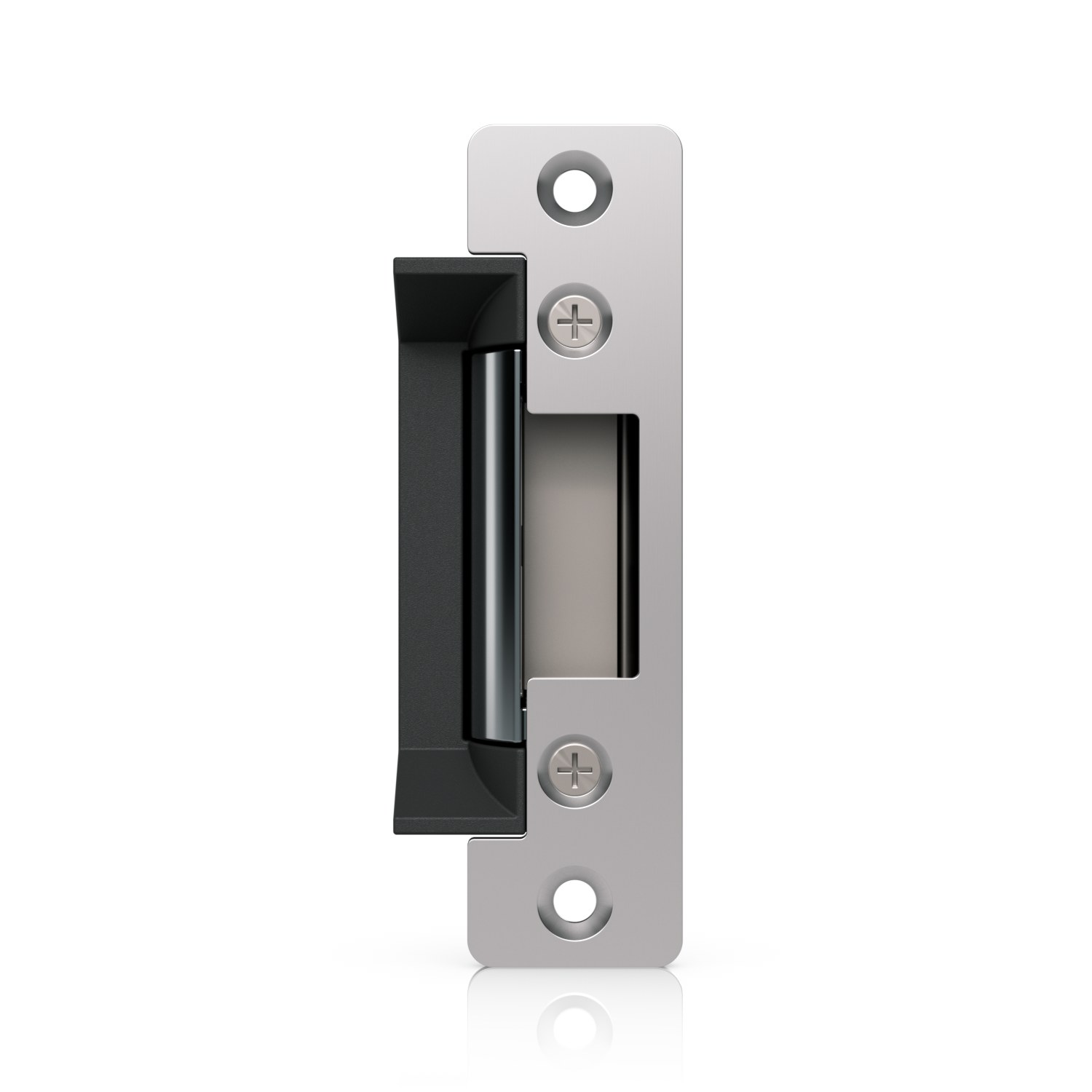

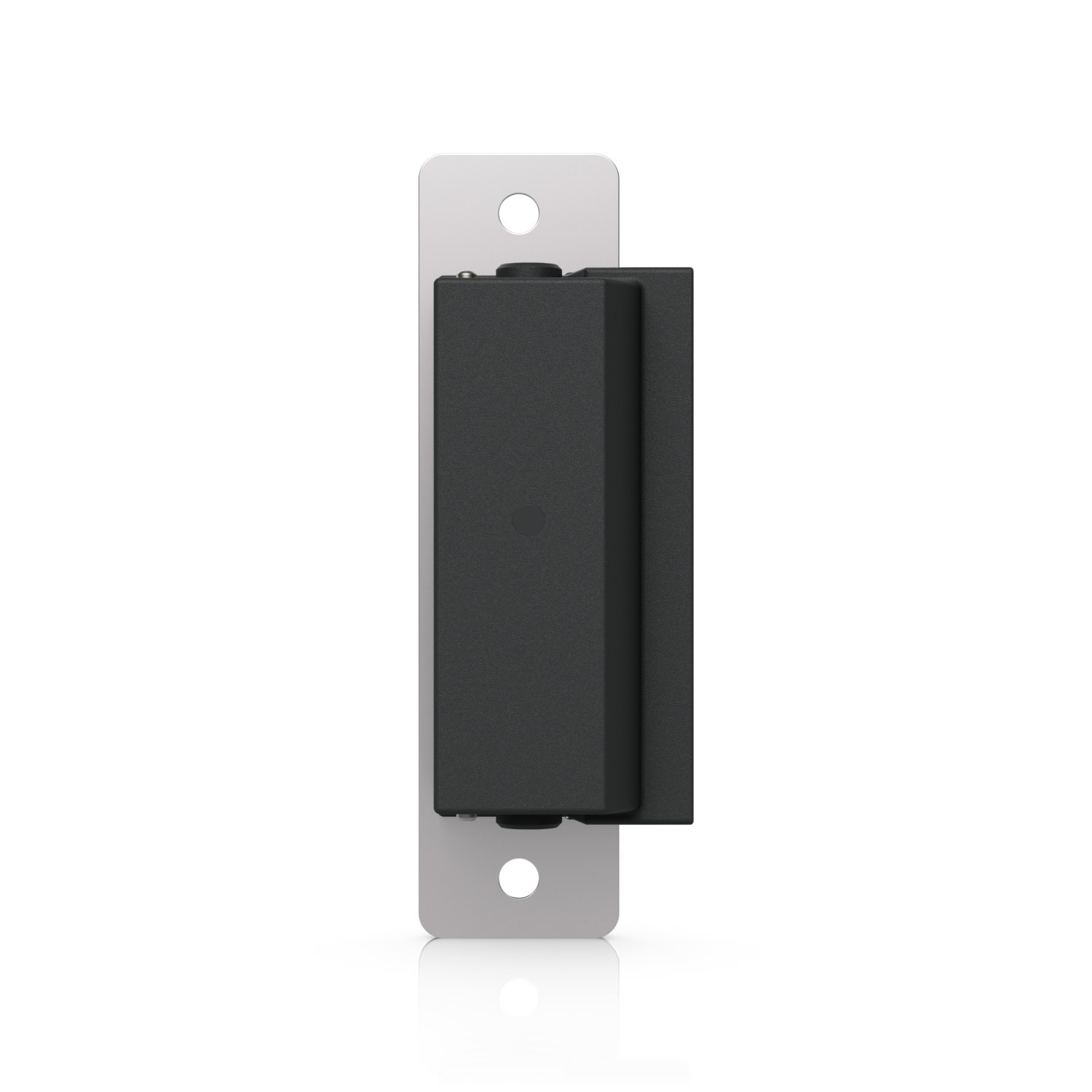

Ubiquiti UACC-Lock-Strike-Secure elektriline vasturaud • 15 mm — an electric strike for a UniFi Access door, 15 mm throw.
Key Advantages and Features:
- Works with UA-Hub: Connects straight to the door controller relay.
- 15 mm throw: Fits most door locks.
- Secure strike: Stays locked without power if configured that way.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4"), Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1"), Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
| Weight | Lock body: 185 g (6.5 oz), Short front plate: 50 g (1.8 oz), Long front plate: 130 g (4.6 oz) |
| Enclosure Material | Lock body: zinc alloy, Front plate/latches: stainless steel |
| Lock Type | Fail secure |
| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 1,200 kg (2,645 lb) |
| Current Power | 400mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NO (red), (1) Lock 12V/COM (black) |
| Mounting | Door frame recess mount |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open, Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | jah |
| Certifications | FCC, IC, CE |
Part of the UniFi system. Exact figures are in the manufacturer's table below.
