Ubiquiti UA-Hub-Door access controller • 1 door • 5 ports • PoE++ in, PoE+ out • DIN rail
€221.96
Not in the Tallinn warehouse right now — shipped from the Baltic warehouse, delivery usually 1–3 working days.
- Ordered before 14:00 from our Tallinn warehouse — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Ubiquiti UA-Hub-Door access controller • 1 door • 5 ports • PoE++ in, PoE+ out • DIN rail"

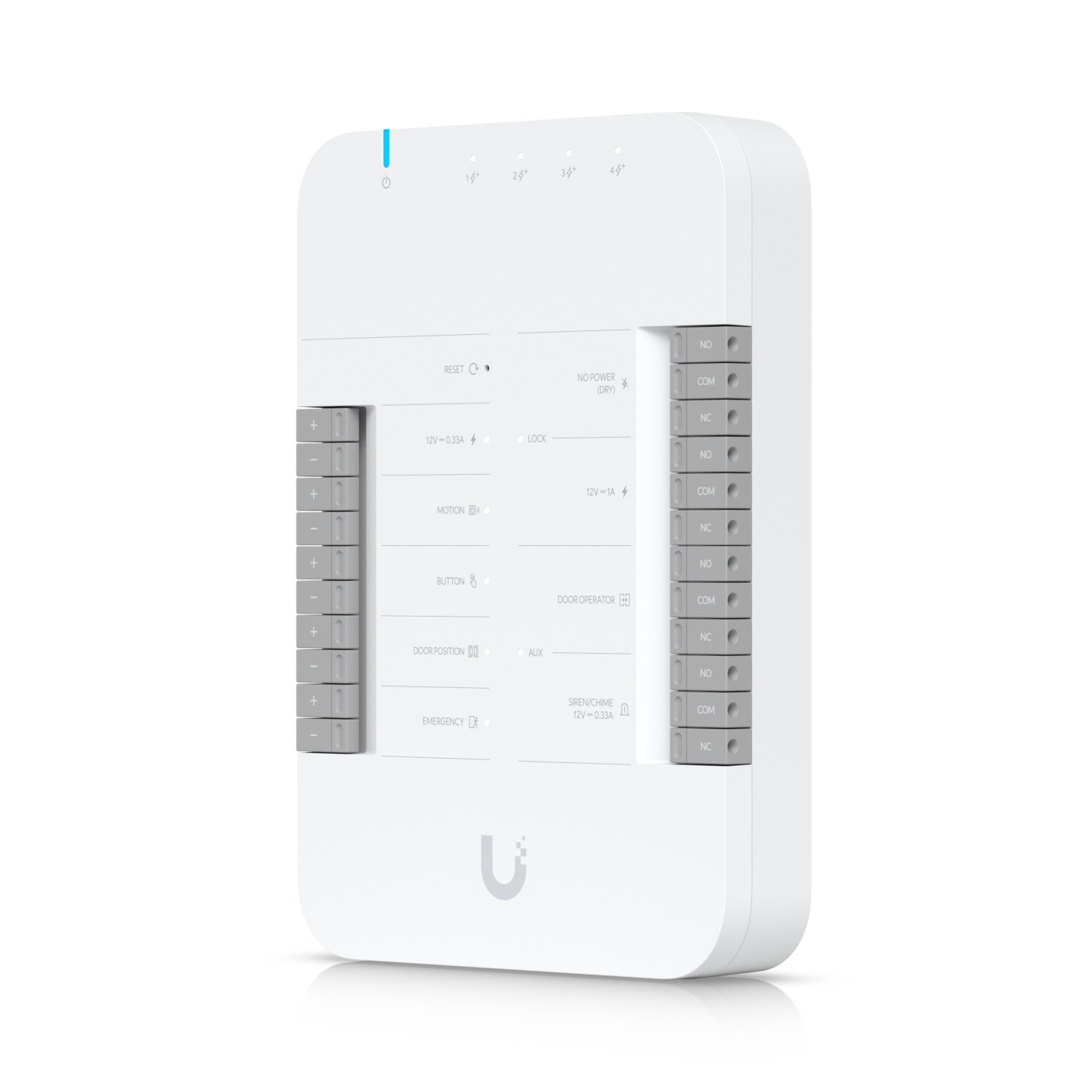

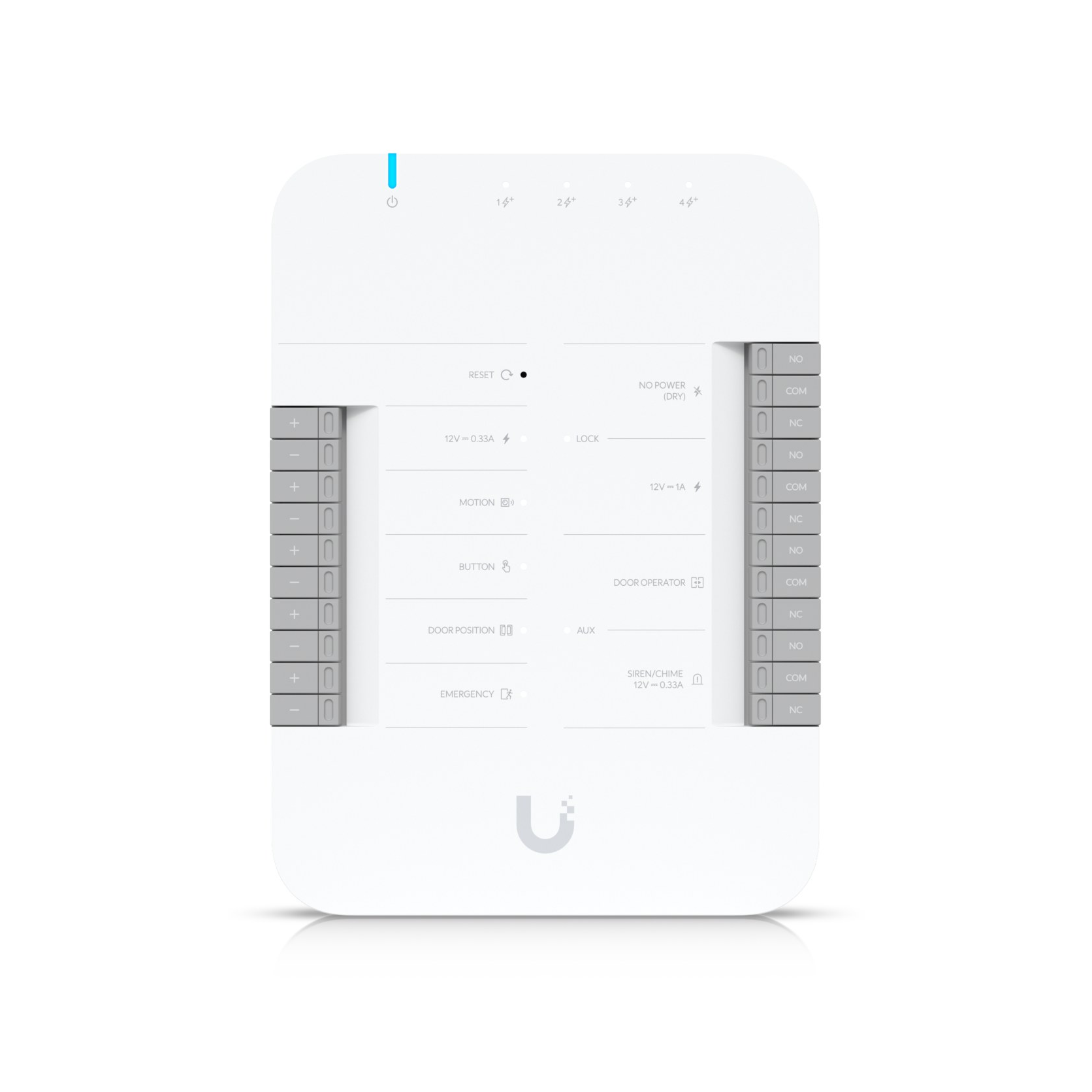

Ubiquiti UA-Hub-Door is the door-side controller: the lock, exit button, door sensor and reader all connect to it. One PoE++ cable comes in and four PoE+ ports go out, so the reader and a camera are powered from the same box.
Key Advantages and Features:
- One door, up to 6000 users: Suits a housing association or an office.
- Four PoE+ outputs: The reader, a camera and other door-side gear are powered from here (45 W total).
- Dry and powered relay: Lock at 12 V DC 1 A or dry contact 30 V DC 1 A.
- Emergency input: The door can be released on a fire alarm signal.

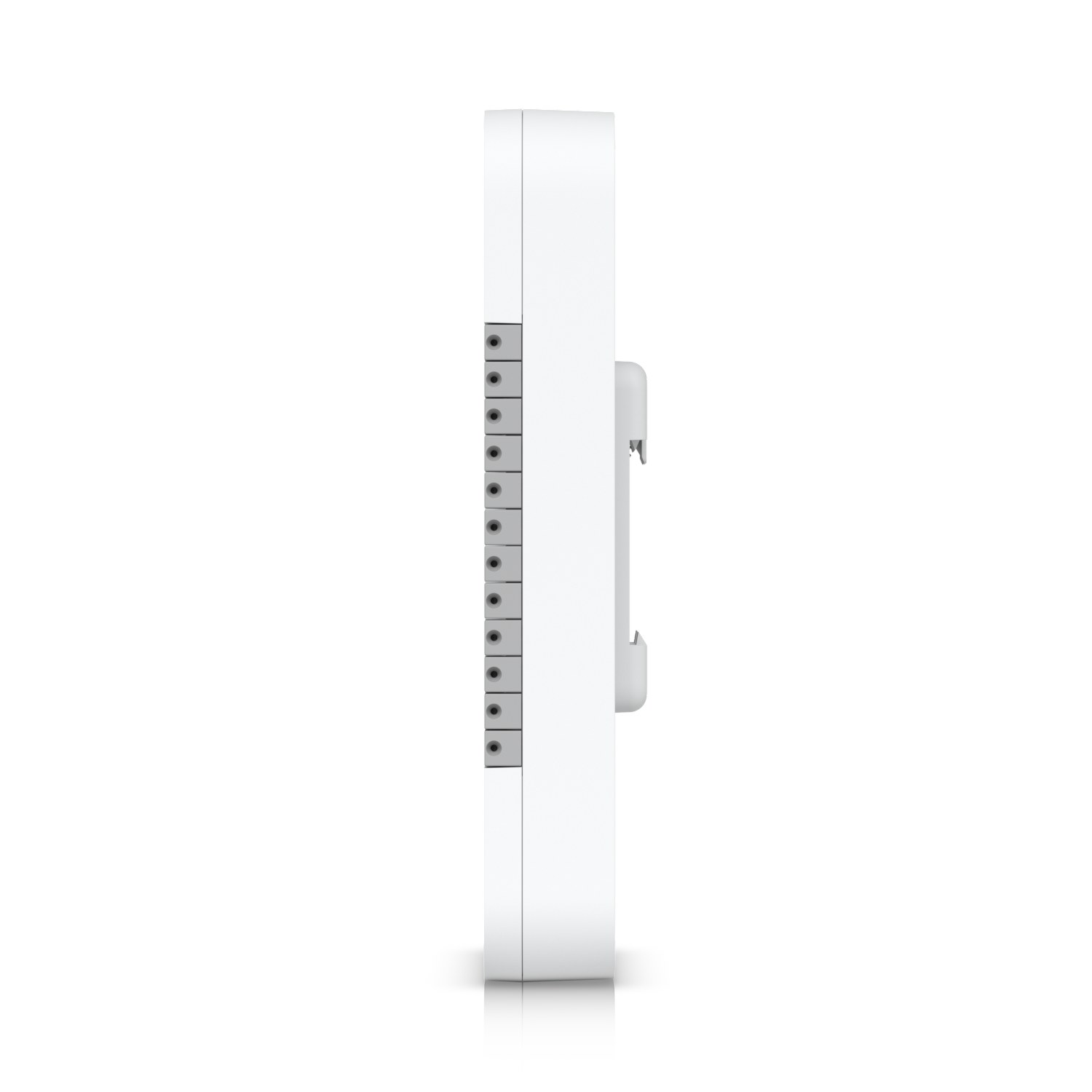

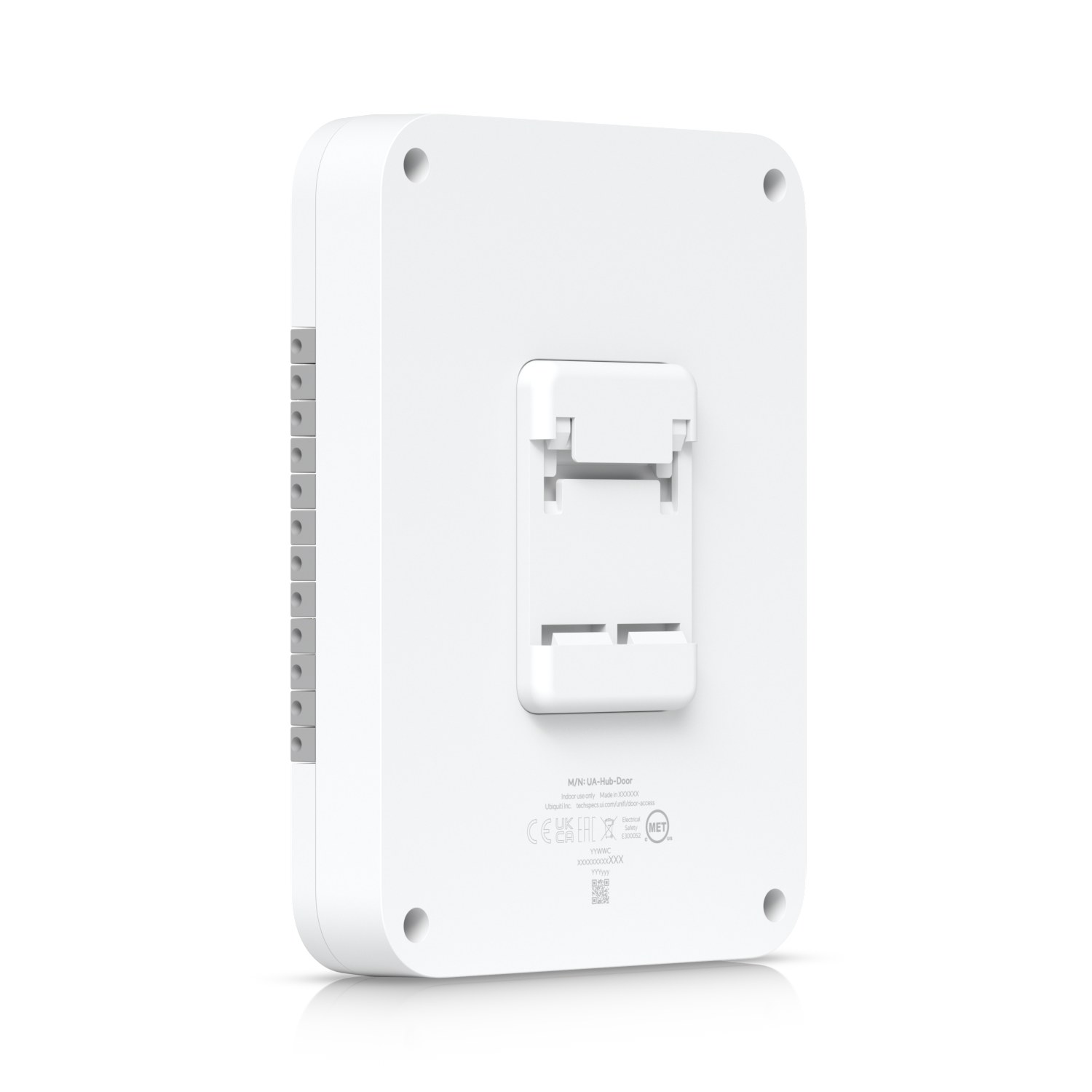

- DIN rail: Fits a standard electrical cabinet.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm, (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
| Power Method | PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | jah |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A, Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A, Aux: 12V DC, 0.33A, 12V DC, 0.33A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C, (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A, (4) PoE+ outputs, 50V DC, 30W per port, (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output), 50W (With PoE output) |
| LEDs | W/B Learn More |
| Buttons | (1) Factory reset |
| UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft), 22 AWG length: 42 m (138 ft), 20 AWG length: 66 m (217 ft), 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft), 22 AWG length: 32 m (105 ft), 20 AWG length: 51 m (167 ft), 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft), 22 AWG length: 20 m (66 ft), 20 AWG length: 30 m (98 ft), 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Other locks (1A) | 24 AWG length: 9 m (30 ft), 22 AWG length: 15 m (49 ft), 20 AWG length: 24 m (79 ft), 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
Each door needs its own hub. Order the reader (UA-G3-Pro or UA-G3-Flex) and the lock separately. The device is part of UniFi Access: doors, users and logs live in the same interface as the UniFi network and cameras. There is no separate server or subscription — it runs on a UniFi recorder or Cloud Gateway.
| Access control type: | Controller |
|---|
