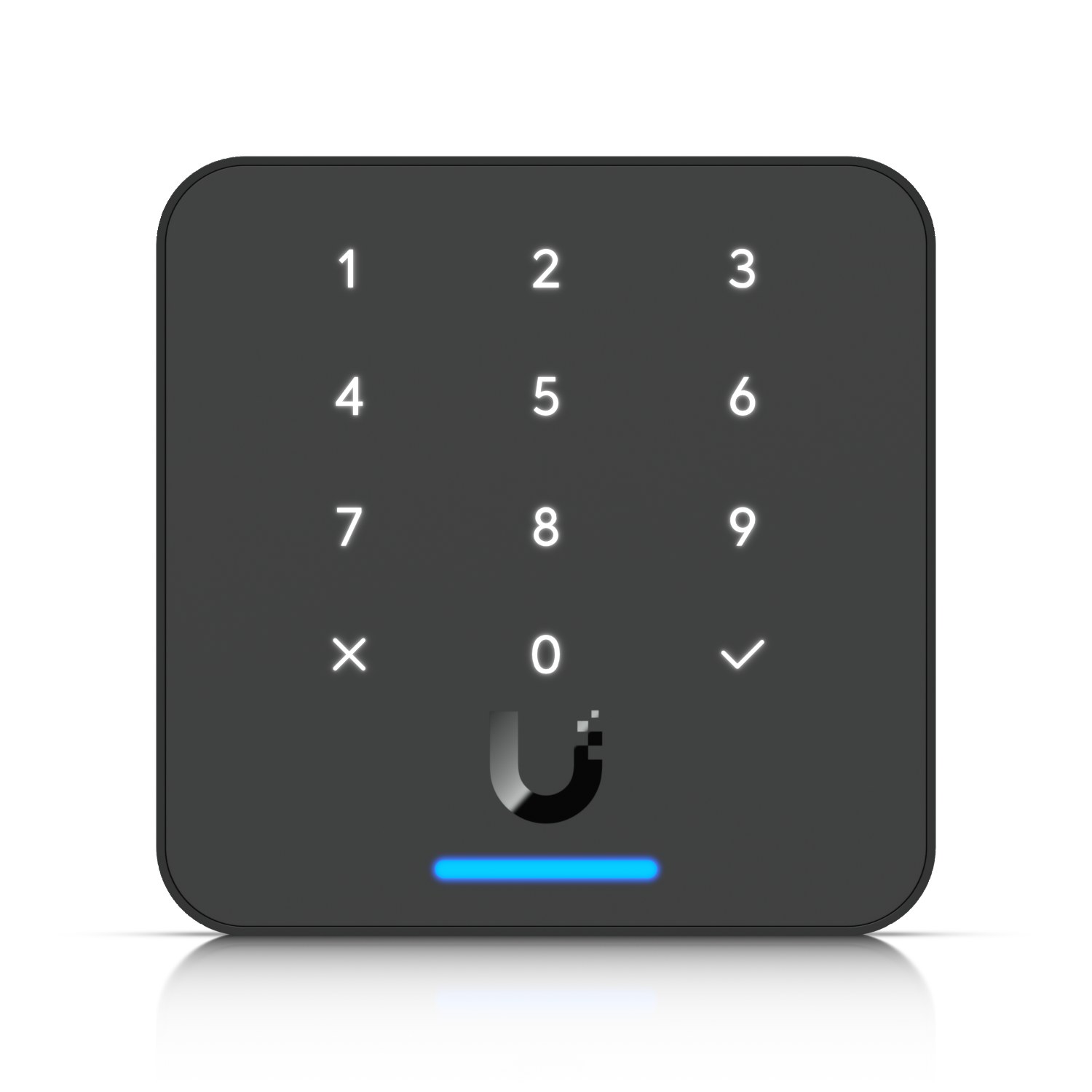

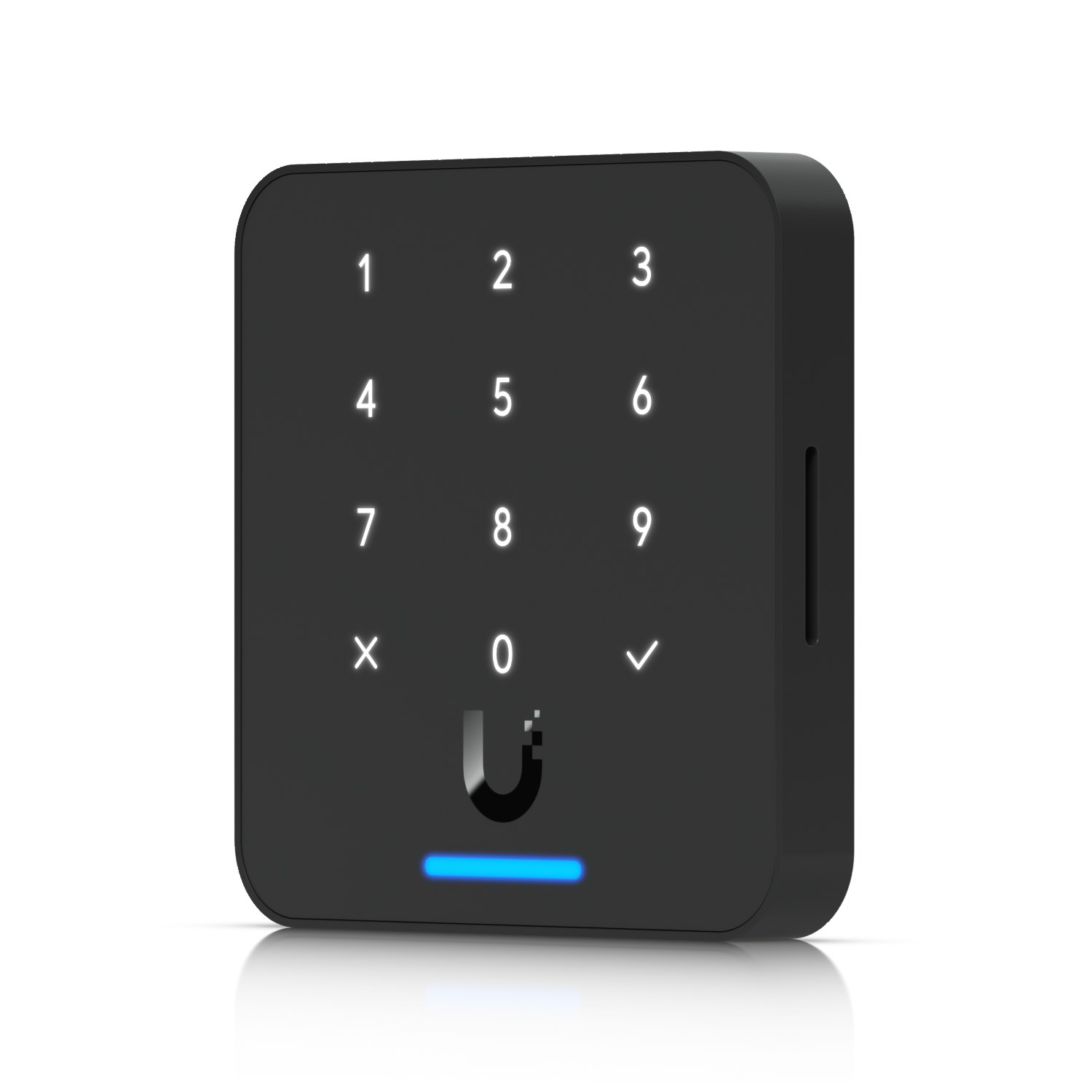

Ubiquiti UA-G3-Flex access reader • NFC and PIN • IP55 • PoE • black

Product "Ubiquiti UA-G3-Flex access reader • NFC and PIN • IP55 • PoE • black"

Ubiquiti UA-G3-Flex is the small, cheaper UniFi Access reader: NFC card and PIN, without a display or camera. It suits doors that just need to open — a back door, a storeroom, a plant room.

Key Advantages and Features:

  • NFC and PIN: Card, fob or code.
  • Small body: Fits a narrow door frame.
  • IP55: Indoor and outdoor.
  • PoE: One cable for power and data.

Technical Specifications:

ParameterSpecification
Dimensions84 x 84 x 40.8 mm, (3.3 x 3.3 x 1.6")
UniFi Application SuiteAccess
NFC Card & Keyfob Accessjah
PIN Accessjah
Apple/Google Walletjah
Mobile Unlockjah
WeatherproofingIP55
NDAA Compliantjah
Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1, NFC
Power MethodPoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range44–57V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
Sensors(12) Capacitive buttons
Speakerjah
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G3-Flex V01
Ambient Operating Temperature-30 to 60° C, (-22 to 140° F)
Ambient Operating Humidity5 to 90% noncondensing

Suits side doors that need no display or intercom. UA-Hub-Door goes on the door side. The device is part of UniFi Access: doors, users and logs live in the same interface as the UniFi network and cameras. There is no separate server or subscription — it runs on a UniFi recorder or Cloud Gateway.

Properties "Ubiquiti UA-G3-Flex access reader • NFC and PIN • IP55 • PoE • black"
Access control type: Reader
Body colour: Black
Identification: Card (RFID), Code (PIN)
Manufacturer "Ubiquiti"

Ubiquiti – radio links and UniFi networks

Ubiquiti is best known for its wireless products: airMAX and airFiber links take the network where cable cannot go. The UniFi line applies the same logic to wired networking and Wi-Fi.

Why Ubiquiti?

  • A radio link instead of cable – you can connect two buildings or yards without digging. In surveillance this is often the only sensible way to get a distant camera back to the recorder.

  • Unified UniFi management – access points, switches and routers in one controller, with a network map and monitoring.

  • Built for outdoors – most of the radio hardware is designed for a mast or a wall and copes with a Nordic climate.

We stock both point-to-point links and UniFi network gear. With any radio link, remember it needs line of sight — if there is forest or a building in the way, a stronger antenna will not fix it.
