Ubiquiti U7-Pro-Wall access point • UniFi Wi-Fi 7
€215.76
- Ordered before 14:00 from our Tallinn warehouse — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Ubiquiti U7-Pro-Wall access point • UniFi Wi-Fi 7"

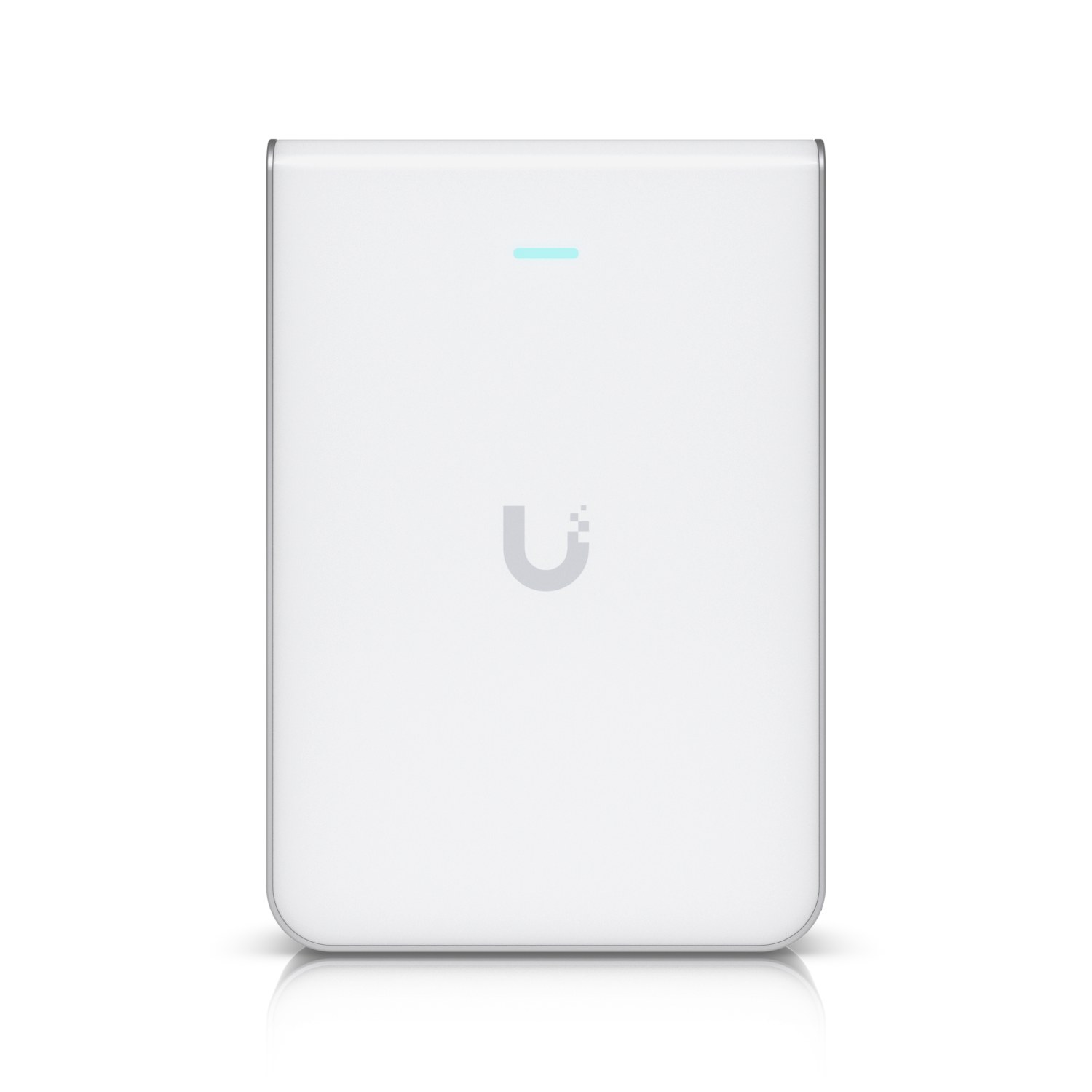

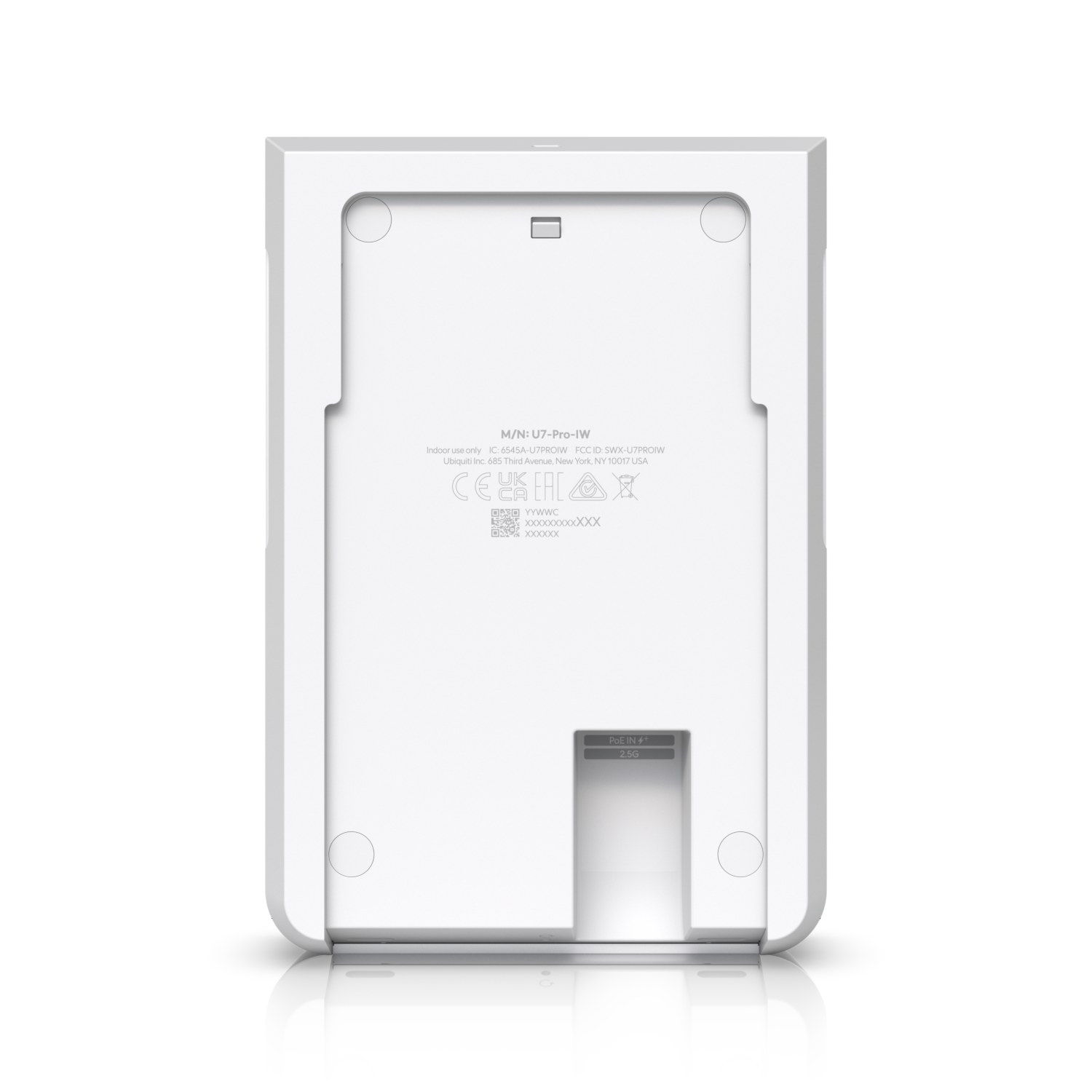

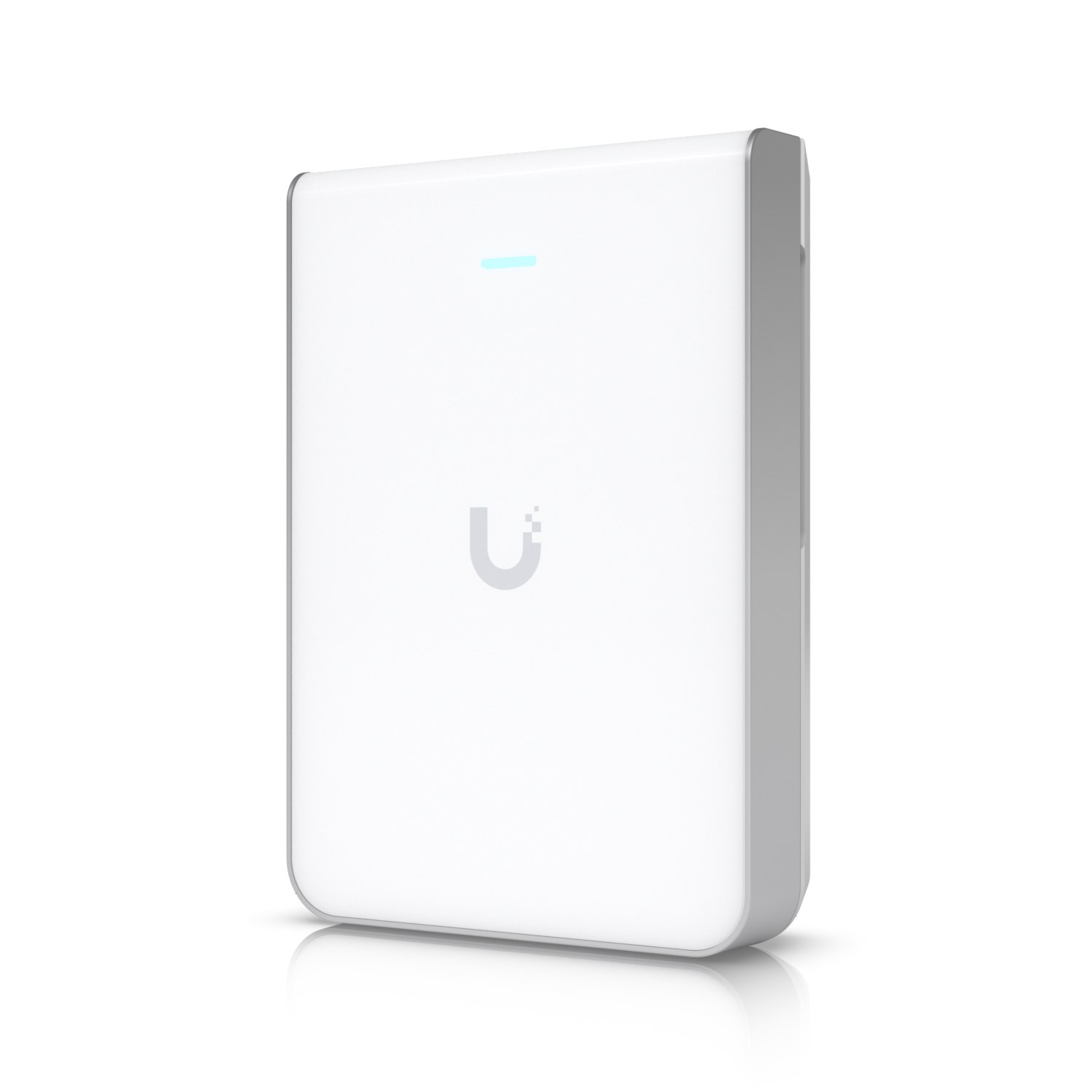

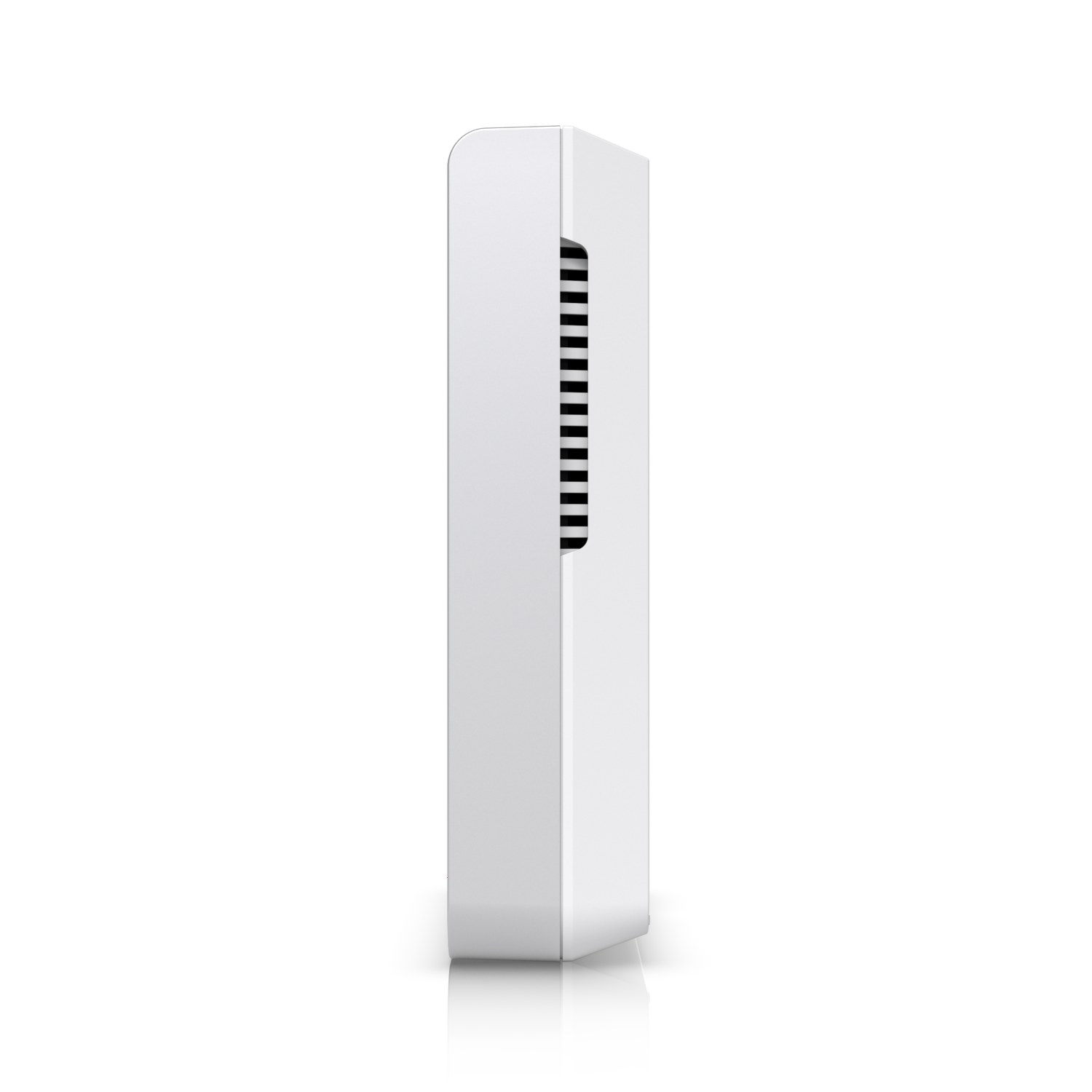

Ubiquiti U7-Pro-Wall is a UniFi Wi-Fi 7 access point. A wall-plate Wi-Fi 7 access point — the same idea as the U6-IW, on the new standard.
Key Advantages and Features:
- Wi-Fi 7: 6 GHz band and lower latency.
- Wall mounted: Fits over a standard back box.
- Ethernet ports: A desktop or IP phone gets a wired link.
- PoE powered: Powered from the cable in the wall.
- Managed in UniFi: The same controller that runs the rest of the UniFi network — no separate software or subscription.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Dimensions | 150 x 103 x 36 mm, (5.9 x 4.1 x 1.4") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, (Mount Included) |
| Power Method | PoE+ |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 23 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 580 g (1.3 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA:, 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8: 5925 - 7125 MHz, … |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | jah |
| Certifications | CE, FCC, IC, Anatel: 10022-24-08356 |
The access point needs a UniFi controller (Cloud Gateway, Dream Machine or UniFi Express) and PoE power.
| Network device type: | Access Point |
|---|---|
| Wi-Fi standard: | Wi-Fi 7 |
Ubiquiti – radio links and UniFi networks
Ubiquiti is best known for its wireless products: airMAX and airFiber links take the network where cable cannot go. The UniFi line applies the same logic to wired networking and Wi-Fi.
Why Ubiquiti?
A radio link instead of cable – you can connect two buildings or yards without digging. In surveillance this is often the only sensible way to get a distant camera back to the recorder.
Unified UniFi management – access points, switches and routers in one controller, with a network map and monitoring.
Built for outdoors – most of the radio hardware is designed for a mast or a wall and copes with a Nordic climate.
We stock both point-to-point links and UniFi network gear. With any radio link, remember it needs line of sight — if there is forest or a building in the way, a stronger antenna will not fix it.
