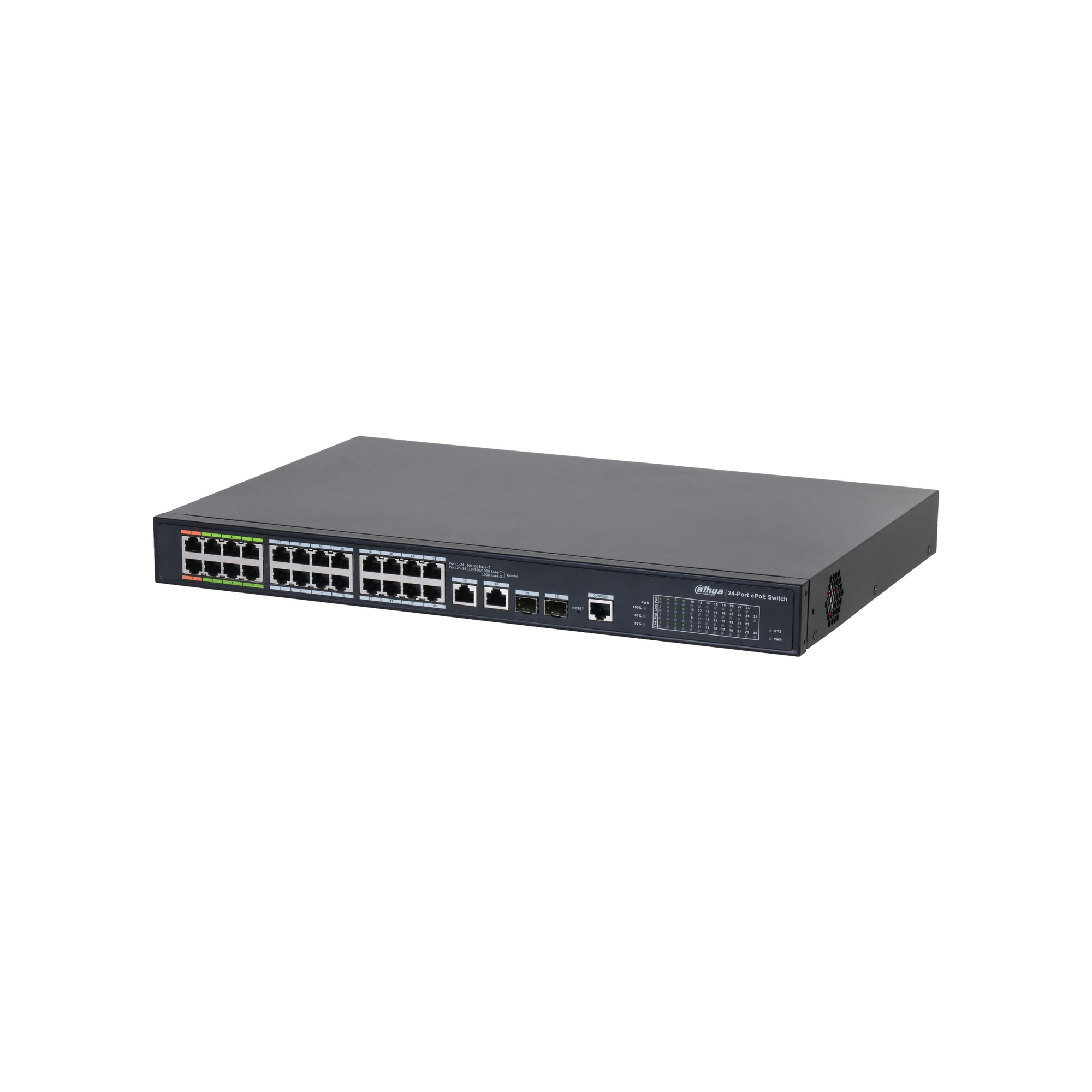

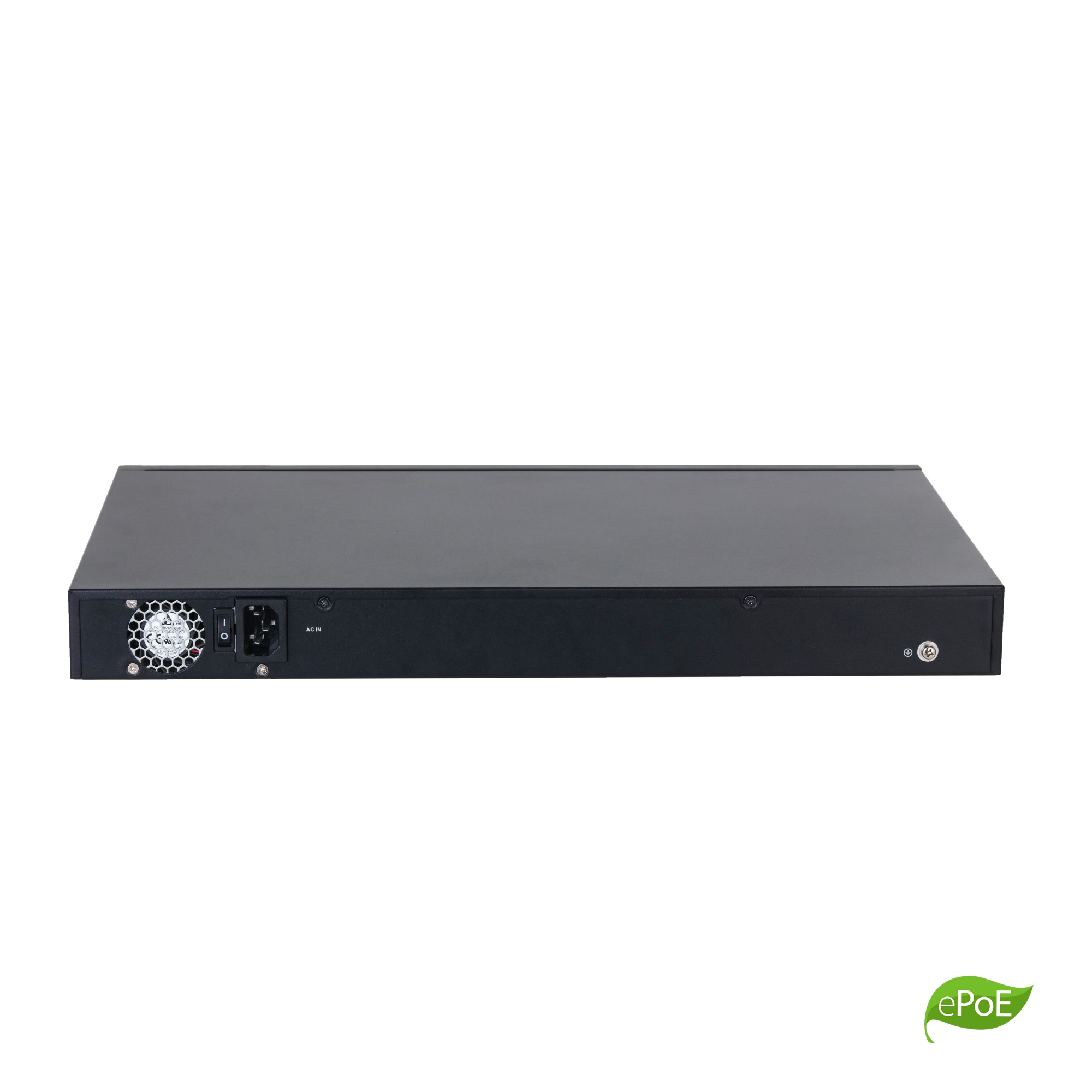

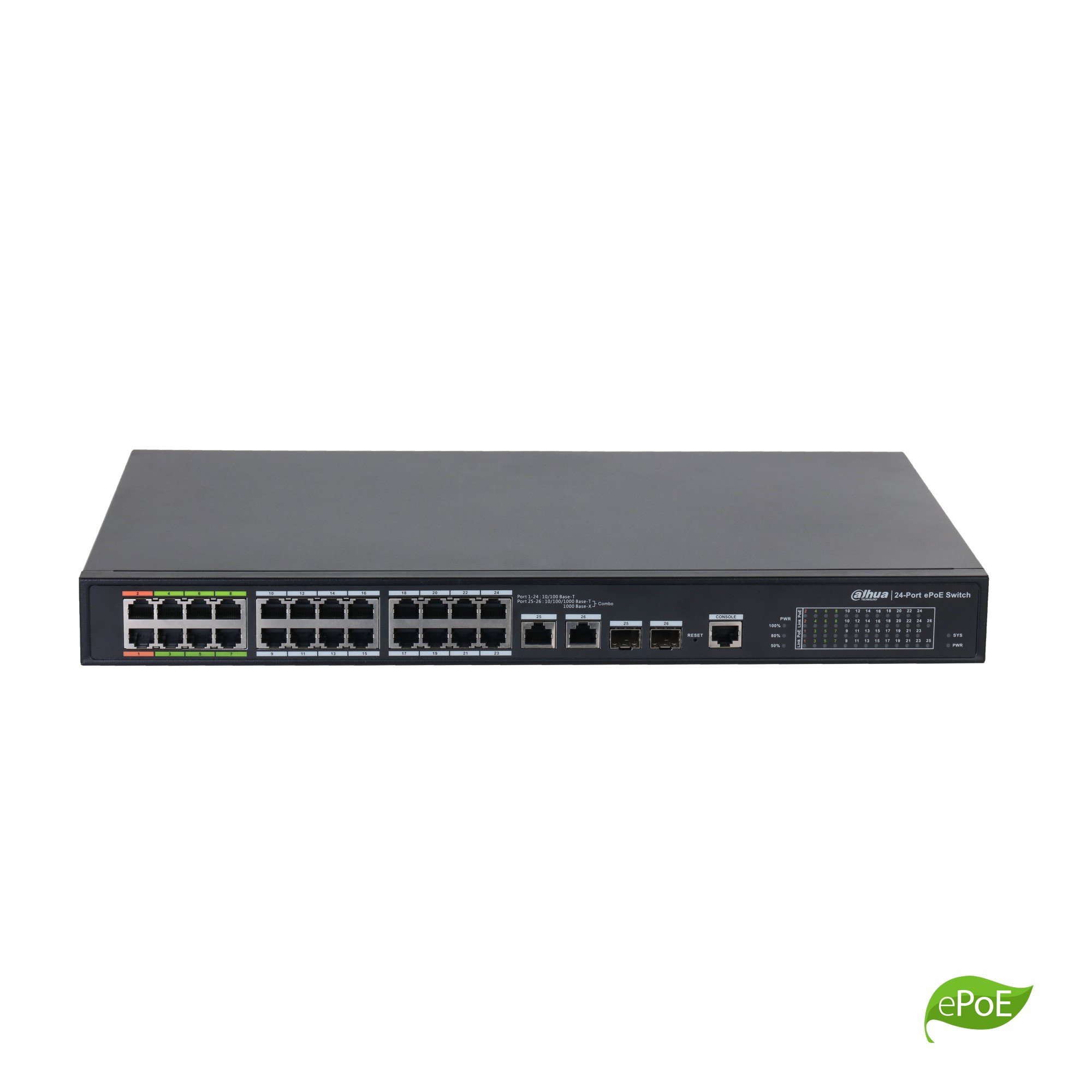

Dahua LR2226-24ET-360 24-Port PoE Switch with 8-Port ePoE
€747.72
Not in stock — available for pre-order. Dahua products ship from the EU warehouse (usually about a week) or from China (about 2 months); we will reply with the exact delivery time and a quote.
- Ordered before 14:00 from our Tallinn warehouse — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Dahua LR2226-24ET-360 24-Port PoE Switch with 8-Port ePoE"
Dahua LR2226-24ET-360-V2 is a 24-port ePoE (Long Reach) long-distance PoE switch (L2 managed) with 24× 10/100 Mbps PoE ports (360 W budget), 2 Gigabit copper and 2 SFP combo uplinks. ePoE delivers power and data up to 800 m without repeaters.
Key Advantages and Features:
- 24 PoE ports: 24× 10/100 Mbps PoE + 2× 10/100/1000 Base-T + 2× 1000 Base-X (combo) uplink
- ePoE long-distance: Power and data up to 800 m (10 Mbps) or 300 m (100 Mbps); twisted-pair and coax
- 360 W PoE budget: 802.3af/at and Hi-PoE; ports 1 and 2 Hi-PoE up to 60 W, others up to 30 W
- Transmission modes: IEEE / E100 / E10 modes (ports 1–8), supports PoE/PoE+/Hi-PoE/PoC
- Managed L2: Layer 2 managed ePoE switch
- Large total budget: 360 W total — suits powering many cameras
Technical Specifications:
| Parameter | Specification |
|---|---|
| Ports | 24× 10/100 PoE + 2× 10/100/1000 Base-T + 2× 1000 Base-X (combo) uplink |
| PoE standard | IEEE 802.3af/at, Hi-PoE, PoC |
| PoE budget | 360 W (ports 1 and 2 ≤60 W, others ≤30 W) |
| ePoE reach | up to 800 m @10 Mbps / 300 m @100 Mbps; twisted-pair + coax |
| Transmission modes | IEEE / E100 / E10 (ports 1–8) |
| Switching capacity | 8.8 Gbps |
| Forwarding rate | 6.55 Mpps |
| Management | Managed Layer 2 |
| Power | 48–57 V DC (external power supply) |
Best suited for: larger distributed surveillance systems with many cameras far from the switch (up to 800 m) — industrial sites, perimeters, roads. Up to 24 PoE cameras, with L2 management.
| PoE: | ePoE |
|---|---|
| Ports: | 24 |
| Port speed: | 10/100 Mbps |
