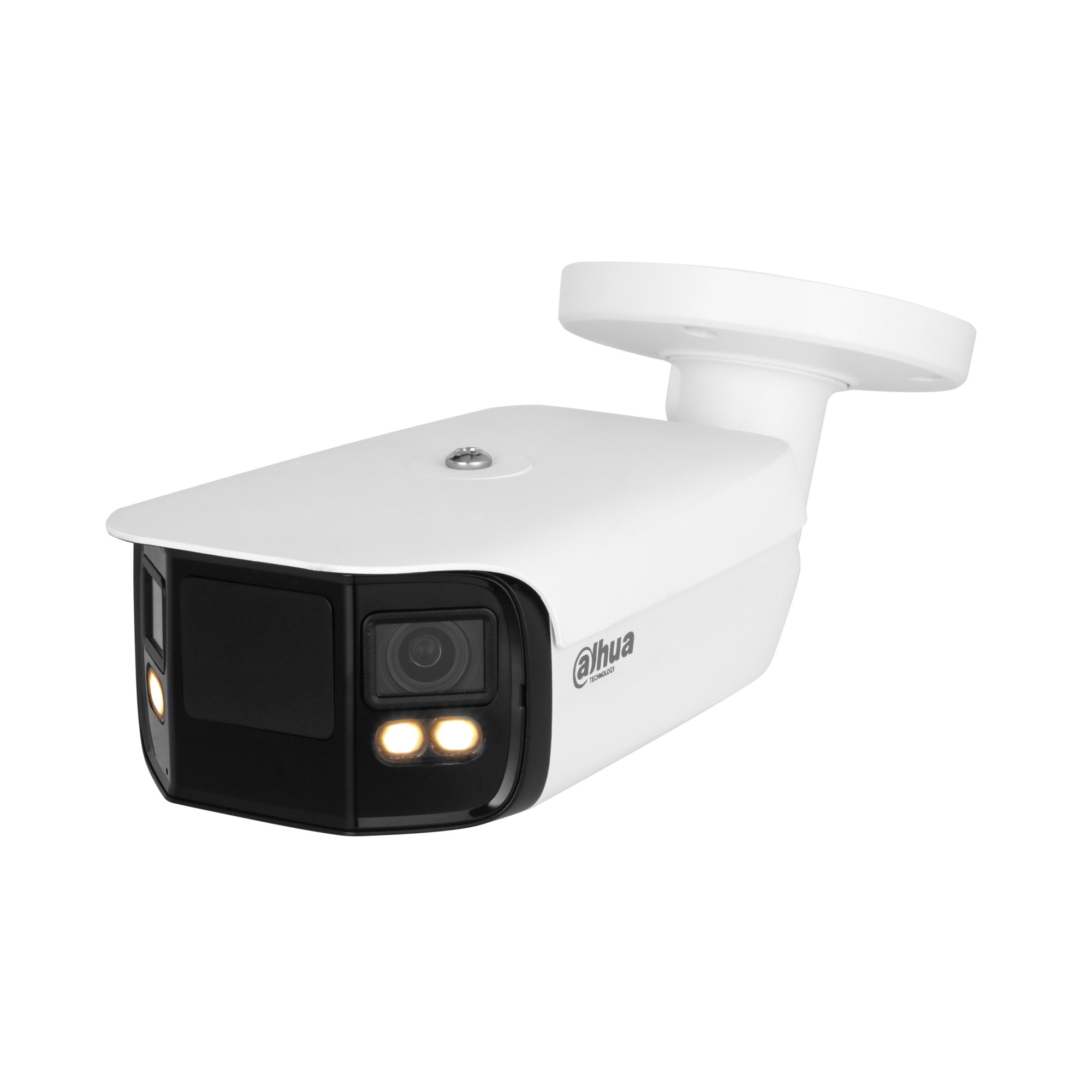

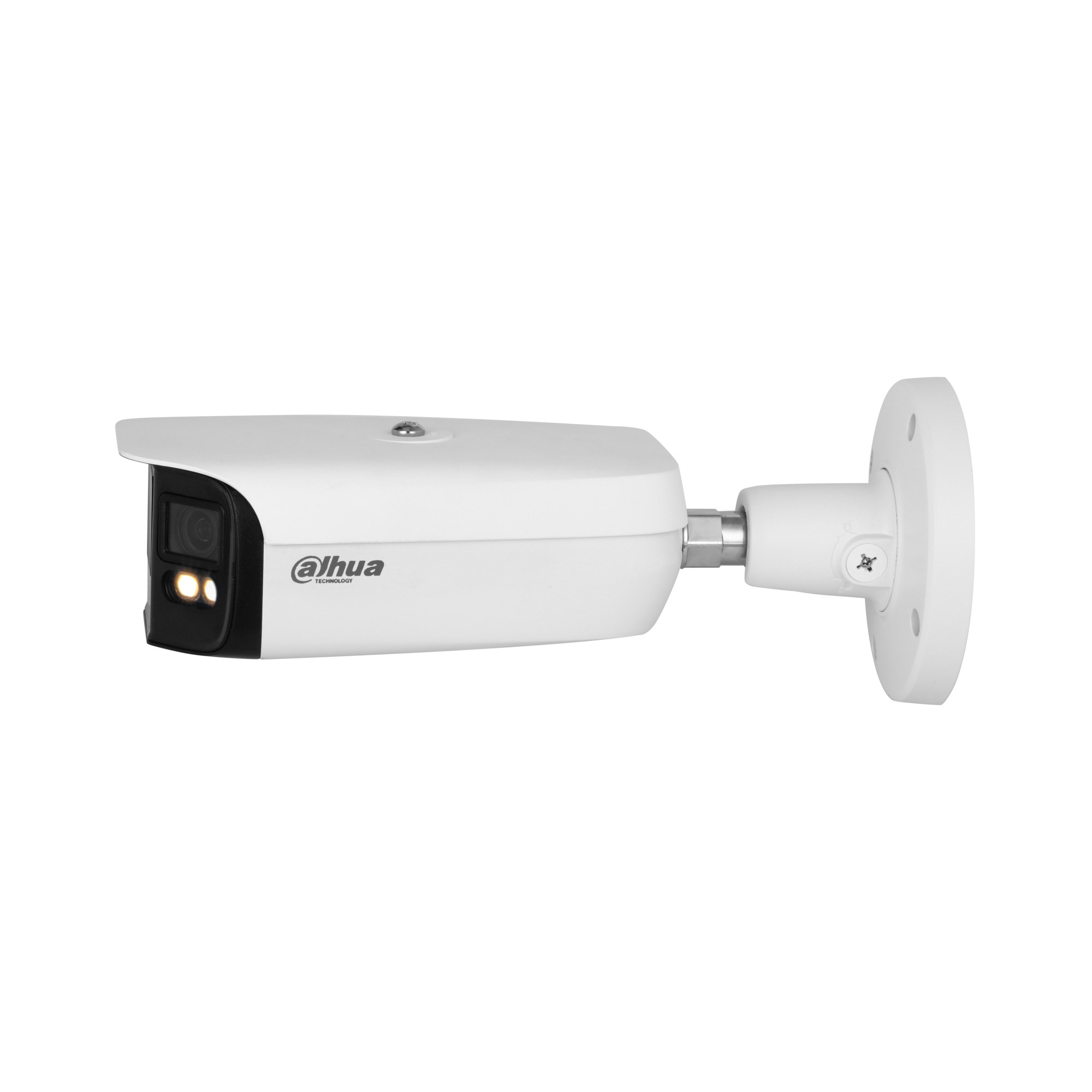

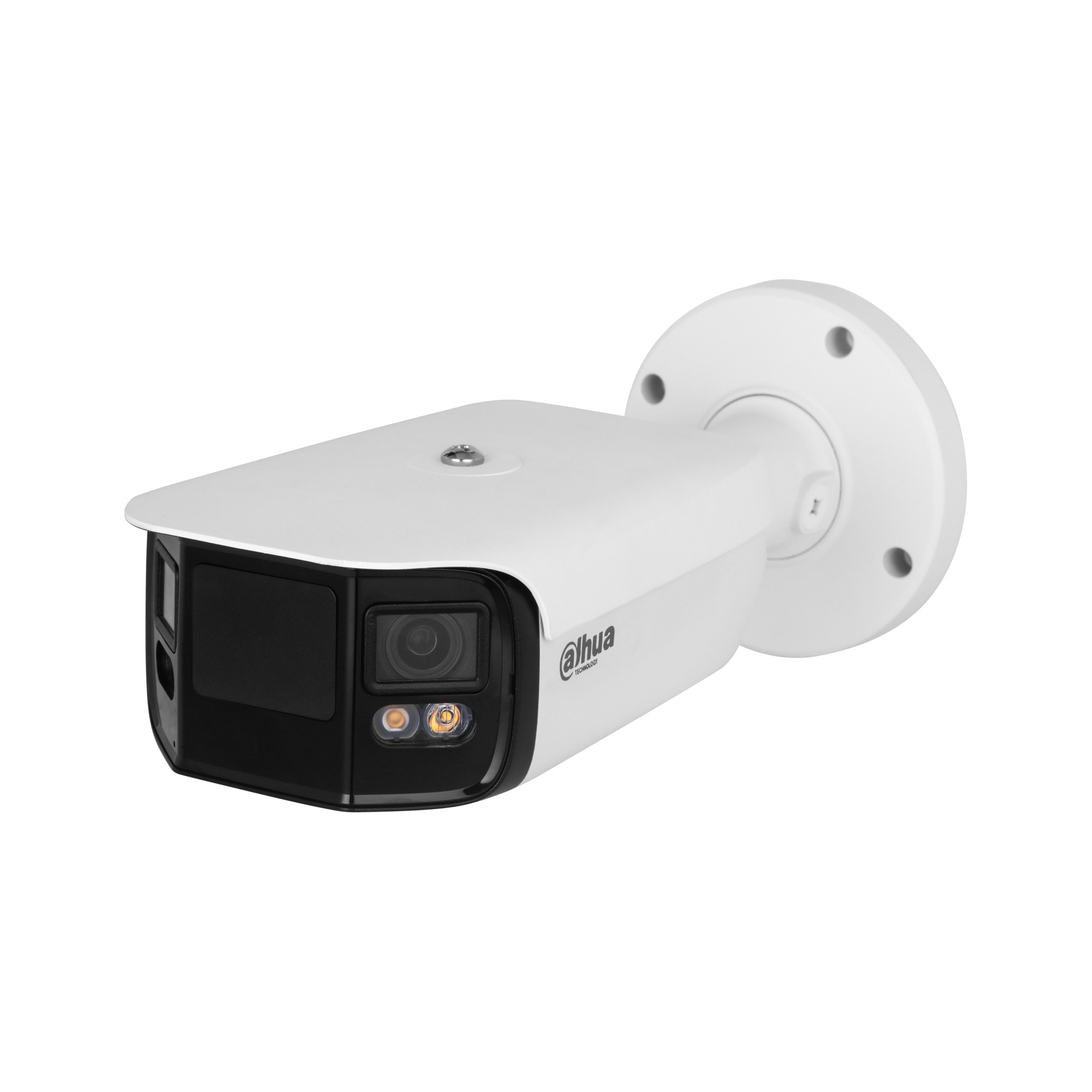

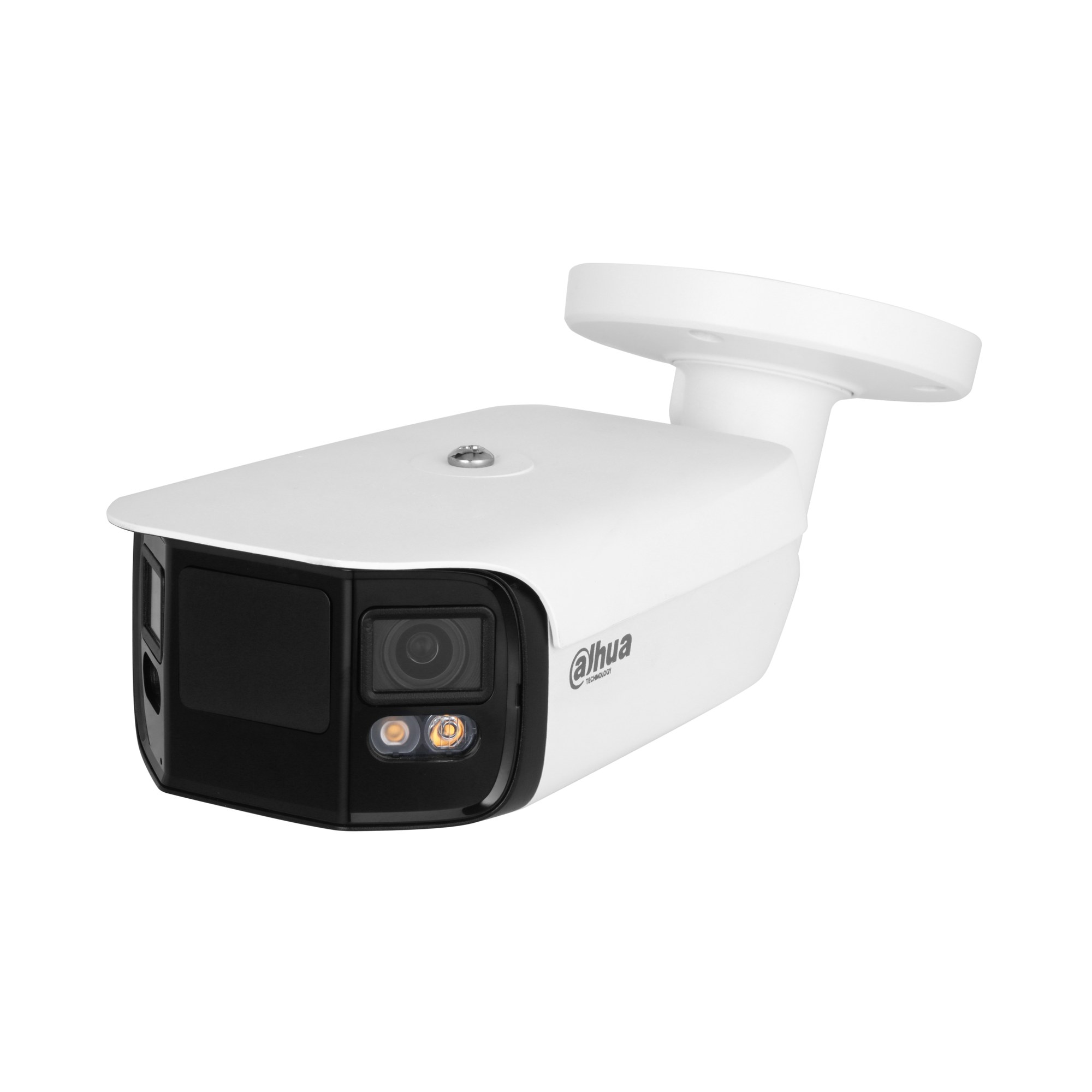

Dahua IPC-PFW5849-A180-E2-ASTE 8MP Bullet Camera – FullColor Duo Splicing
€823.36
- Ordered before 14:00 — dispatched the same business day
- Collection from our Tallinn warehouse is always free — delivery options and prices
- 14-day right of return for private customers
- Need advice? +372 6715042
Product "Dahua IPC-PFW5849-A180-E2-ASTE 8MP Bullet Camera – FullColor Duo Splicing"
Dahua IPC-PFW5849-A180-E2-ASTE is a WizMind 5 series Duo Splicing bullet camera with two independent 4MP lenses that stitch two 3.6mm views into one seamless 180° panoramic image (8MP, 4096×1800). FullColor technology with built-in warm LED illumination delivers full-colour video even in darkness, up to 40 metres.
Key Advantages and Features:
- Two 4MP lenses, one 180° image: Two independent 1/1.8" CMOS sensors and 3.6mm F1.0 lenses are stitched in real time into a single 4096×1800 panoramic view.
- FullColor night vision: Built-in warm LED illumination up to 40m delivers a full-colour image even in total darkness, without a monochrome IR mode.
- EPTZ zoom and tracking: Automatically zooms in on and tracks multiple alarm-triggering targets while still keeping the full panoramic overview.
- Perimeter protection and people counting: Tripwire, intrusion, fast moving with vehicle/human classification; heat map and people-counting reports.
- Two-way audio: Built-in microphone and speaker enable two-way talk directly through the camera.
- High dynamic range (WDR): 140 dB WDR delivers a balanced image even in scenes with strong contrast.
- Weatherproof and flexible power: Metal housing rated IP67; powered via 12V DC (±30%), PoE+ (802.3at) or ePoE.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Sensor | Two 1/1.8" CMOS sensors, 8MP combined |
| Lens | Fixed 3.6mm, F1.0, field of view H:180°, V:48° (per lens) |
| Light Sensitivity | 0.0005 lux @F1.0 (colour); 0.0002 lux (B/W); 0 lux (illuminator on) |
| Night Vision | Warm LED illumination up to 40m, automatic control |
| WDR | 140 dB |
| Resolution & FPS | Main stream 4096×1800@25fps (WDR off) / 20fps (WDR on); 3 streams |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream) |
| AI Analytics | Perimeter protection (tripwire, intrusion, fast moving, loitering, gathering, parking), people counting, heat map, EPTZ |
| Audio | Built-in microphone and speaker, two-way talk; G.711a/Mu, PCM, G.726, G.723 |
| Alarm | 1 input, 1 output |
| Storage | MicroSD up to 512GB, also supports FTP/SFTP/NAS |
| Power Supply | 12V DC (±30%) / PoE+ (802.3at) / ePoE |
| Power Consumption | Basic 4.8W (12VDC)/5.5W (PoE); max 10.5W (12VDC)/11.8W (PoE) |
| Protection Ratings | IP67 |
| Operating Environment | -40°C to 60°C |
| Protocols | ONVIF Profile S/G/T, CGI, Milestone, IPv4/IPv6, RTSP, RTMP |
| Dimensions | 301.2 x 128.2 x 120.1 mm |
| Weight | Net 1420 g, gross 1570 g |
Best suited for: the IPC-PFW5849-A180-E2-ASTE is a great fit for entrances, gates and wide areas that need a seamless 180° overview with no blind spots.
* Note: the camera supports on-board recording to a MicroSD card (up to 512GB); for continuous recording and management a separate NVR or VMS is recommended.
| Alarm: | Alarm in, Alarm out |
|---|---|
| Audio: | Audio in, Audio out |
| Body colour: | White |
| Body type: | Bullet camera |
| Camera power: | 12 V DC, ePoE, PoE+ (802.3at) |
| Lens: | Fixed |
| Resolution: | 8 MP |
| Sensor: | 1/1.8" |
| Smart features: | Heat map, Object detection, People counting, Perimeter protection, WizMind |
| White light: | 40 m |
