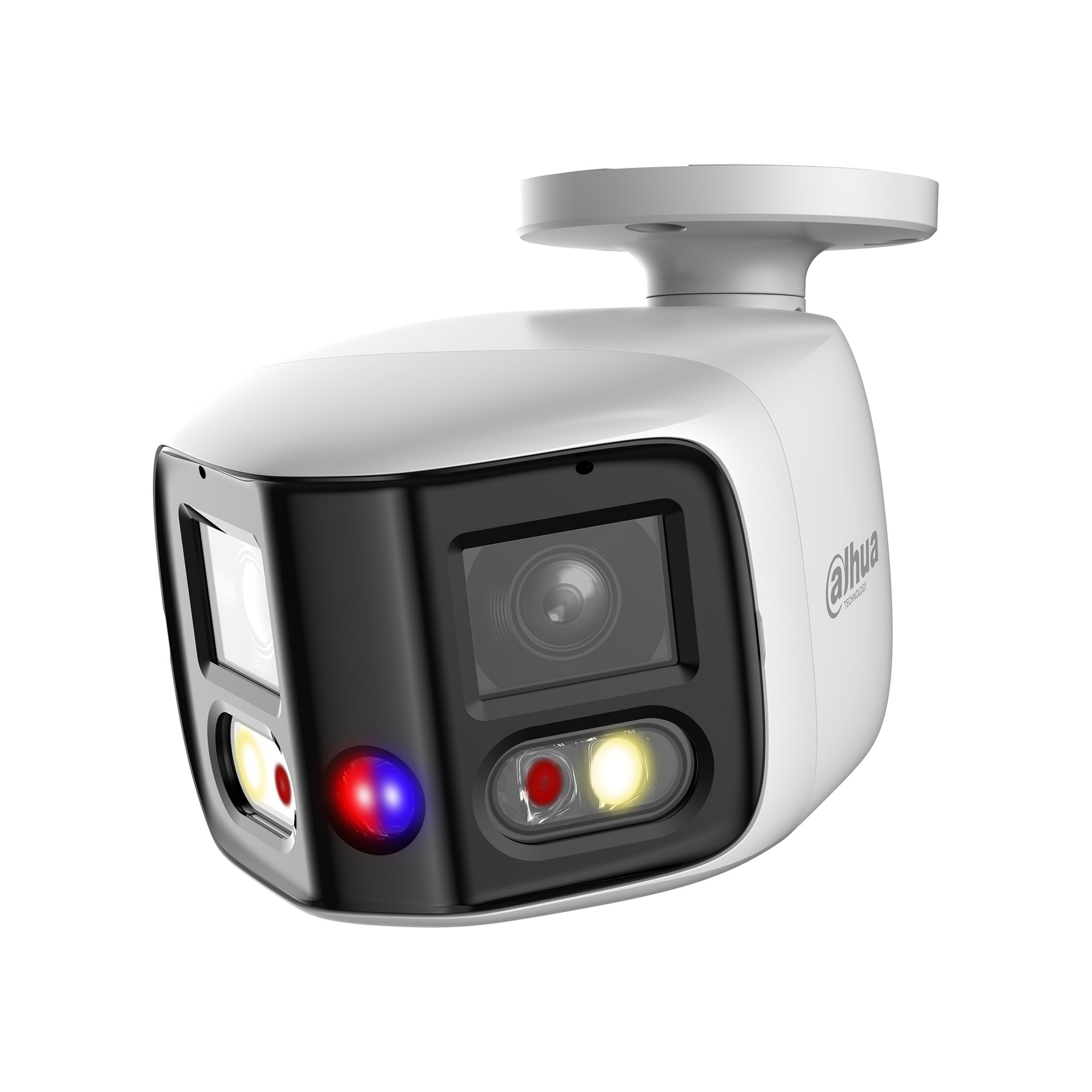

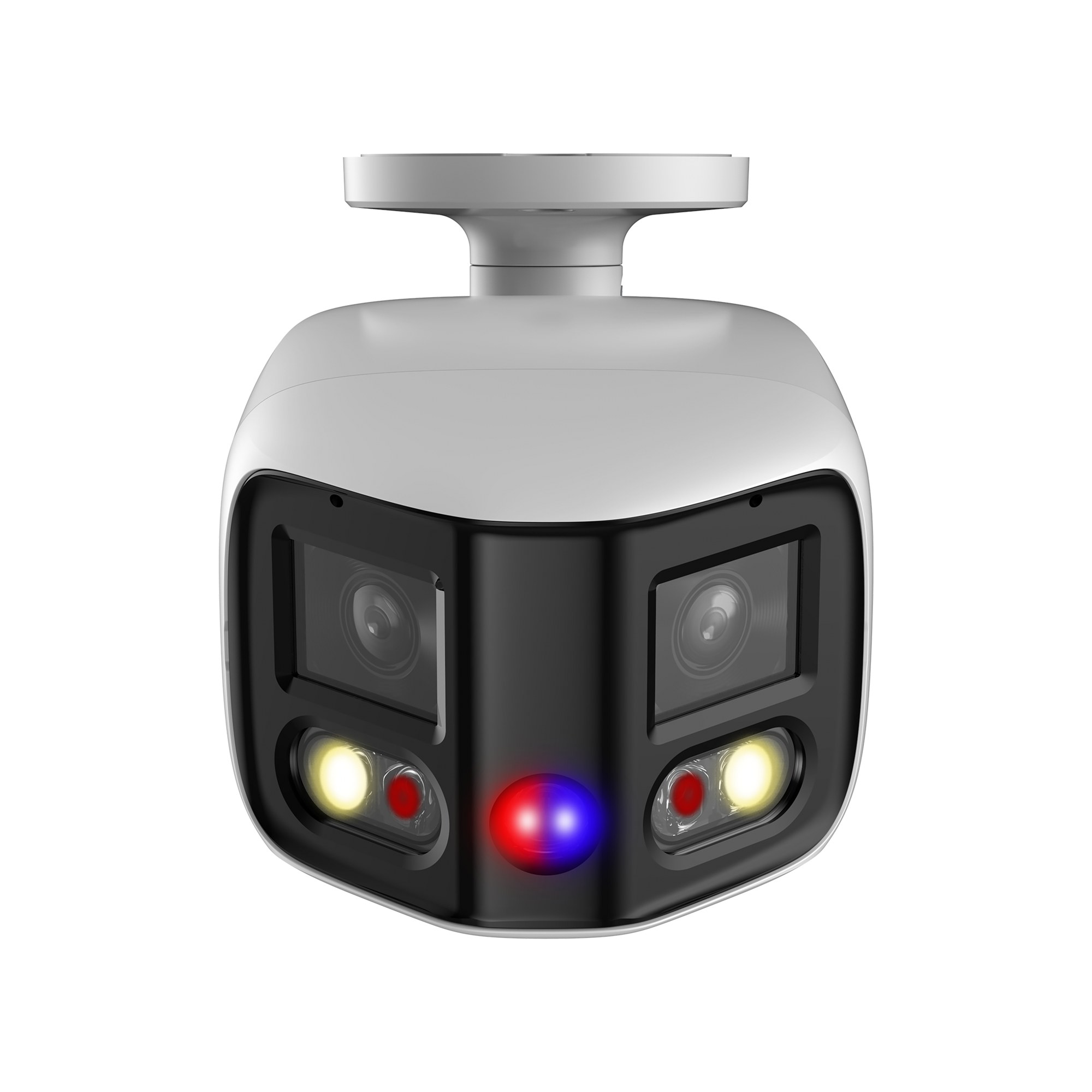

Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B 2x4MP IP Panoramic Camera – Duo Splicing 180°, TiOC Active Deterrence
€536.92
Product "Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B 2x4MP IP Panoramic Camera – Duo Splicing 180°, TiOC Active Deterrence"
Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B is a "Duo Splicing" panoramic camera whose two independent 4-megapixel 2.8 mm lenses merge into one seamless 180° wide view (up to 8 MP combined). It is designed to cover large open areas — yards, parking lots and building facades — with a single camera instead of several, and adds TiOC active deterrence (siren plus flashing lights) to help ward off intruders.
Key Advantages and Features:
- 180° Duo Splicing view: Two independent 2.8 mm lenses merge their images into one seamless wide view, covering ground that would normally need two cameras.
- TiOC active deterrence: On detecting an intrusion, the camera automatically triggers a siren and flashing red/blue lights.
- Full-color night vision: The built-in warm LED light enables color video recording even in darkness.
- SMD 4.0 and Quick Pick: AI classifies people and vehicles to cut false alarms and speeds up event search with an AI NVR.
- EPTZ tracking: Zooms in and tracks alarm-triggering targets while retaining the overall scene.
- Two-way audio: A built-in dual microphone and speaker allow direct communication through the camera.
- IP67 protection: Dust- and water-resistant housing suitable for any outdoor weather.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Sensor | Dual 1/2.7" CMOS sensors (2× 4 MP) |
| Lens | 2× fixed 2.8 mm, F1.4, combined FOV H:180° V:86° |
| Light sensitivity | 0.005 lux@F1.4 (color); 0.0005 lux (B/W); 0 lux with illuminator on |
| Night vision | IR illuminator up to 25 m and warm LED light up to 20 m (full-color mode) |
| Dynamic range (WDR) | 120 dB |
| Resolution & FPS | Combined image up to 8 MP (4096×1860)@20 fps, up to 3 streams |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); AI H.265/H.264 |
| AI analytics | IVS (tripwire, intrusion with human/vehicle classification), SMD 4.0, Quick Pick, EPTZ |
| Audio | Built-in dual microphone and speaker, two-way talk; 1 audio in / 1 audio out (RCA) |
| Alarm | 1 in / 1 out; sound and light alarm (red/blue lights) |
| Storage | MicroSD, up to 256 GB |
| Protocols | ONVIF (Profile S/G/T), CGI, IPv4/IPv6, HTTP(S), RTSP, RTMP, FTP, P2P, etc. |
| Dimensions | 183.1 × 99.0 × 78.0 mm |
| Weight | 695 g (net) |
| Housing material | Metal, IP67 |
| Network interface | RJ-45 10/100 Mbps |
| Power | 12 VDC (±30%) / PoE (802.3af), up to 10.3 W typical max |
Best suited for: covering yards, parking areas and building facades with a single camera where a wide, seamless field of view plus active deterrence is needed.
* Note: the camera supports on-board recording to a MicroSD card (up to 256GB); for continuous recording and management a separate NVR or VMS is recommended.
| Body colour: | White |
|---|---|
| Body type: | Bullet camera |
| Lens: | Fixed |
| Series: | WizSense |
