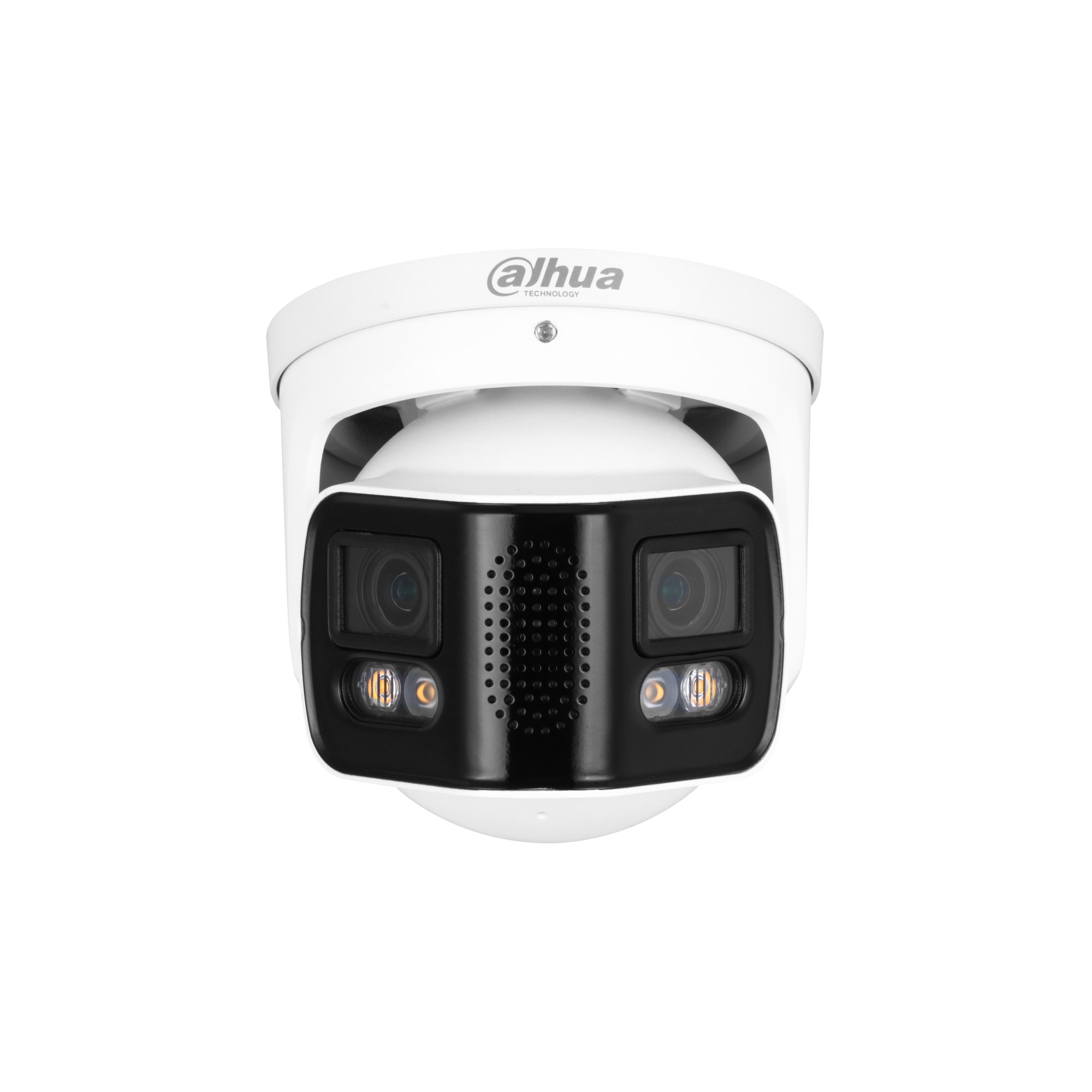

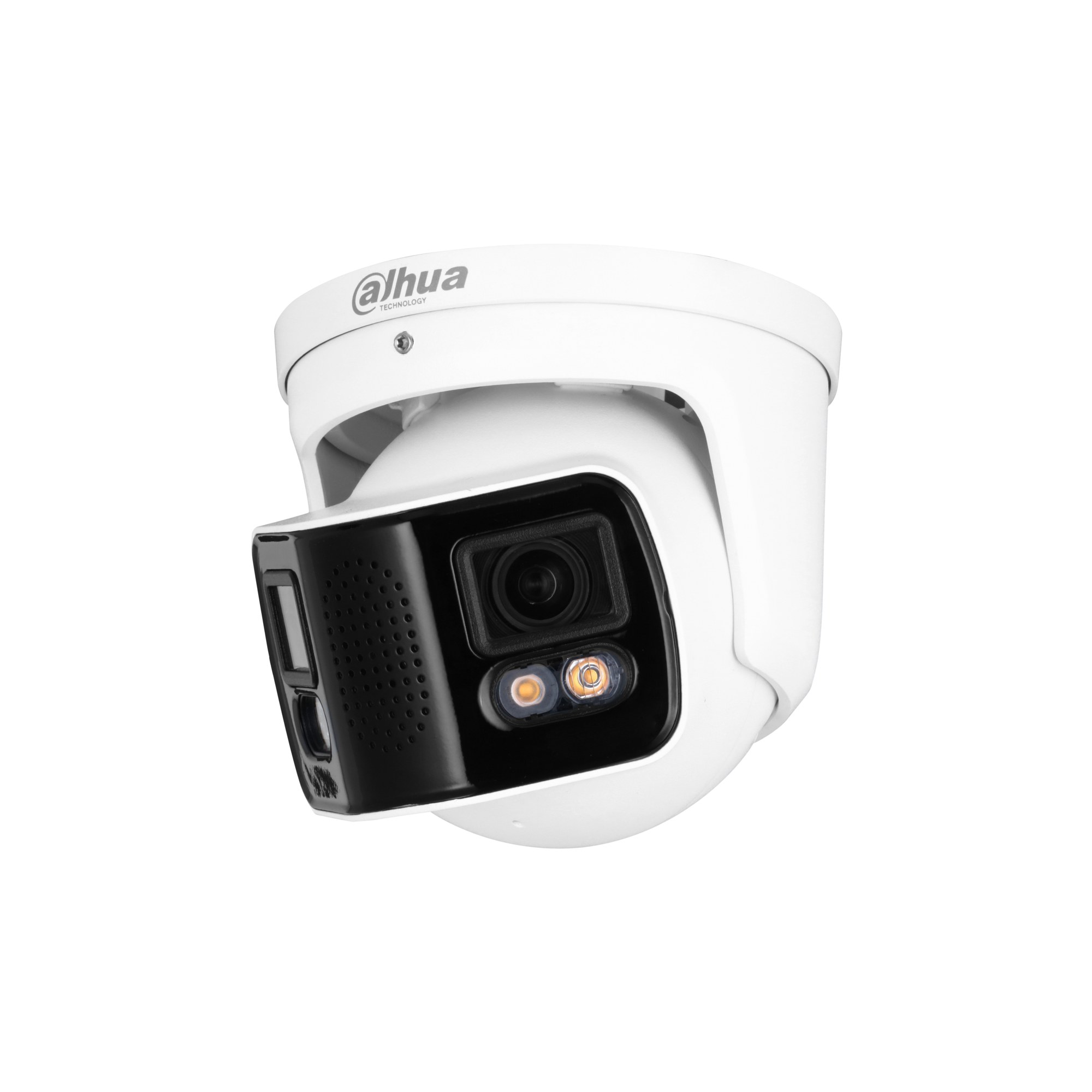

Dahua IPC-PDW5849-A180-E2-ASTE 2×4MP Full-color Duo Splicing WizMind Network Camera
€823.36
Product "Dahua IPC-PDW5849-A180-E2-ASTE 2×4MP Full-color Duo Splicing WizMind Network Camera"
Dahua IPC-PDW5849-A180-E2-ASTE-0360B is a 2×4MP (8MP total) multi-sensor 180° panoramic full-colour camera with WizMind AI and ePoE support. Two large 1/1.8'' sensors are stitched pixel-perfectly into one wide 180° panoramic image for exceptional full-colour night imaging.
Key Advantages and Features:
- 180° panorama: Two sensors give a pixel-perfect 180° wide view from one unit, covering a wide area without blind spots.
- Large 1/1.8'' sensors: Two 4MP sensors deliver a combined 4096 × 1800 image at 25 fps with excellent light sensitivity.
- Enhanced Night Color: Four warm-light LEDs reaching 40 m deliver full-colour images even in total darkness (0.0005 lux).
- Ultra WDR 140 dB: Very wide dynamic range keeps detail clear under strong lighting contrast.
- WizMind Analytics+: Perimeter protection, heat map, people counting, object detection and EPTZ for smart tracking.
- Two-way audio: Built-in microphone and speaker plus RCA in/out.
- ePoE and ArcticPro: ePoE allows long cable runs; the housing withstands temperatures down to -40 °C.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Sensor | Two 1/1.8'' 4MP progressive CMOS sensors |
| Number of sensors | 2 (180° panorama via pixel-level splicing) |
| Total resolution | 8MP (4096 × 1800) @25 fps |
| Lens | Two fixed 3.6 mm lenses, F1.0, 180°±10° view |
| Night light | Enhanced Night Color — 4 warm-light LEDs up to 40 m, full-colour 0.0005 lux |
| WDR | Ultra WDR 140 dB |
| Video compression | Smart H.265+ / H.264+ |
| AI analytics | WizMind Analytics+ — perimeter protection, heat map, people counting, object detection, EPTZ |
| Audio | Built-in microphone and speaker + RCA in/out, two-way |
| Memory card | microSD up to 512 GB |
| Protocols | ONVIF, RTSP, IP |
| Network interface | RJ-45, ePoE |
| Housing | Metal, IP67, ArcticPro (down to -40 °C) |
| Power | ePoE |
Best suited for: wide night-time monitoring of car parks, ports, industrial sites and building perimeters needing panorama and exceptional full-colour night vision in harsh conditions. Record to an NVR or microSD card.
| Body colour: | White |
|---|---|
| Body type: | Turret camera |
| Lens: | Fixed |
| Resolution: | 8 MP |
| Series: | WizMind |
