Dahua IPC-PDW3859-A180-E2-AS-PV-0280B 2×4MP Eyeball Camera – TiOC Duo Splicing 180° panorama, active deterrence
€508.40
Product "Dahua IPC-PDW3859-A180-E2-AS-PV-0280B 2×4MP Eyeball Camera – TiOC Duo Splicing 180° panorama, active deterrence"

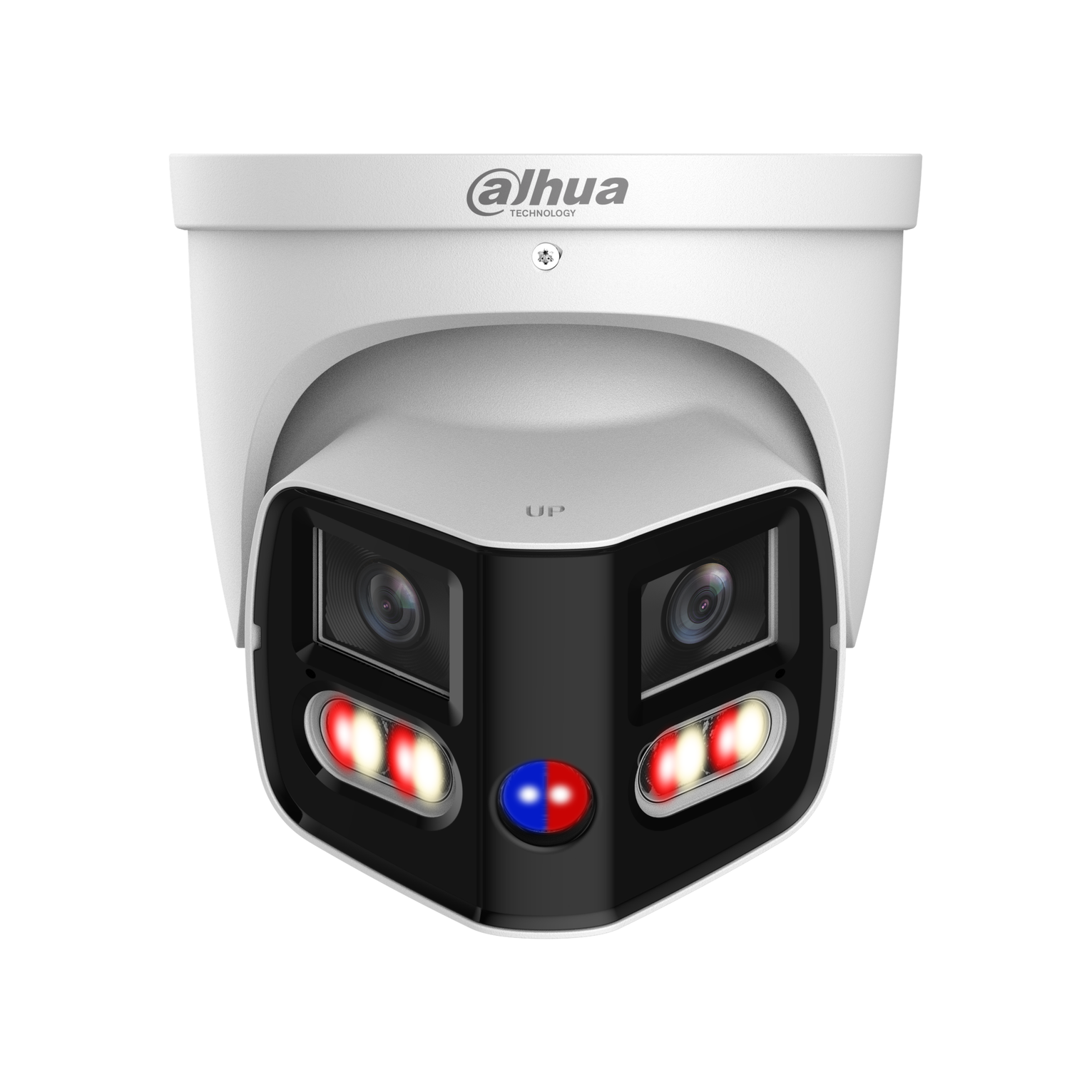

Dahua IPC-PDW3859-A180-E2-AS-PV-0280B is a TiOC eyeball camera with two 4 MP sensors fused into one seamless 180° panorama (8 MP total). Smart Dual Light gives either a discreet black-and-white or a full-colour image in the dark, active deterrence (red-blue light and siren) warns an intruder immediately, and WizSense AI tells a person or vehicle apart.
Key Advantages and Features:
- 2×4MP TiOC Duo Splicing 180°: Two 4 MP sensors are fused at pixel level into one seamless 180° panorama (8 MP total, 4320 × 1944) — one camera covers an entire façade or yard with no blind spots.
- Smart Dual Light up to 30 m: At night infrared gives a discreet black-and-white image; on target detection the warm light switches on and the image turns to full colour.
- Active deterrence: A flashing red-blue light and siren (11 alarm sounds plus custom) warn an intruder on the spot, not after the fact.
- WizSense AI: SMD 4.0 and AcuPick, perimeter protection (IVS) with human/vehicle classification, face detection and scene self-adaptation (SSA) cut false alarms.
- Two-way audio: Built-in dual microphone and dual speaker — listen and talk through the camera.
- 120 dB WDR: Wide dynamic range brings out detail in direct sun and in shade alike.
- Built for outdoors: IP67 metal housing, operating range −40 °C to +60 °C.
- PoE over one cable: Power and data from a PoE switch; recording to microSD (up to 512 GB) or an NVR.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Sensor | 2× 1/2.7″ CMOS (dual sensor) |
| Resolution | 8 MP total — 4320 × 1944 (2×4 MP spliced) |
| Frame rate | 4320 × 1944 @ up to 20 fps |
| Lens | fixed 2.8 mm, F1.4, M12 |
| Field of view | horizontal 180°, vertical 72° |
| DORI | detect 50.6 m / observe 20.2 m / recognize 10.1 m / identify 5.1 m |
| Minimum illumination | 0.003 lx (colour), 0.0003 lx (B/W), 0 lx with illuminator |
| Night light | Smart Dual Light: infrared + warm light up to 30 m |
| WDR | 120 dB |
| Video compression | H.265, H.264, MJPEG; AI H.265/H.264 |
| Streams | 3 (main 4320×1944; sub 1200×536; third 1920×860) |
| AI functions | WizSense, SMD 4.0, AcuPick, IVS perimeter protection, face detection, EPTZ, scene self-adaptation (SSA) |
| Active deterrence | red-blue light warning; siren 11 sounds + custom, volume 0–100 |
| Audio | built-in dual microphone and dual speaker; two-way talk; 1 in / 1 out (RCA) |
| Memory card | microSD up to 512 GB; NAS |
| Network interface | RJ-45 (10/100/1000) |
| Network protocols | ONVIF (S/G/T/M), CGI, HTTP, HTTPS, RTSP, RTMP, IPv4/IPv6 |
| Power | 12 V DC / PoE |
| Consumption | 5.6 W (PoE) typical; 14.8 W (PoE) maximum |
| Operating temperature | −40 °C to +60 °C |
| Protection | IP67 |
| Housing | metal |
| Dimensions (device) | 135.2 × Φ122.0 mm |
| Weight | 0.99 kg (device) |
places needing a wide 180° overview from a single camera and cable — car parks, yards, storage areas and building façades. Active deterrence works preventively. Recording to a microSD card (up to 512 GB) or an NVR.
| Body colour: | White |
|---|---|
| Body type: | Turret camera |
| Lens: | Fixed |
| Series: | Xinghan, WizSense |
