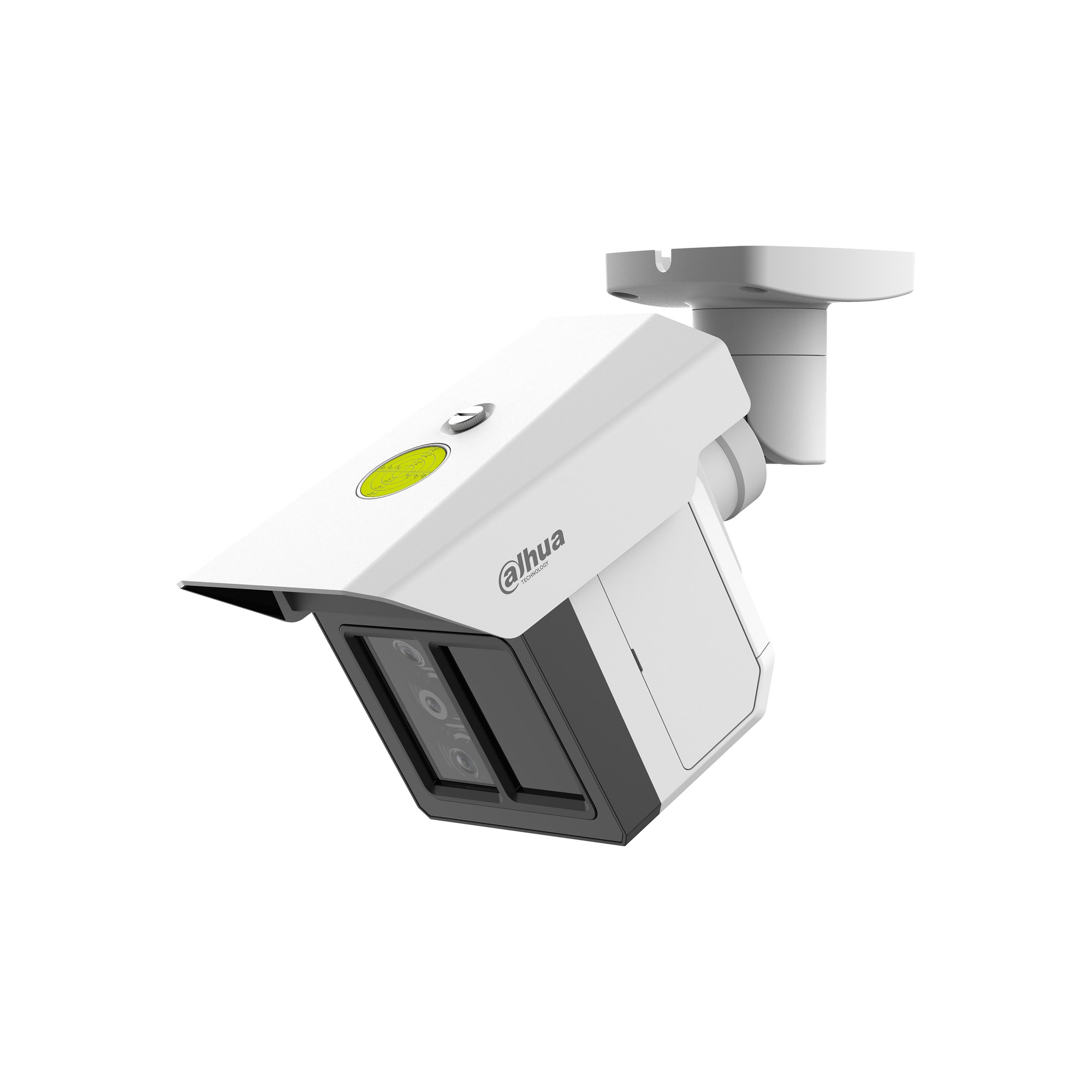

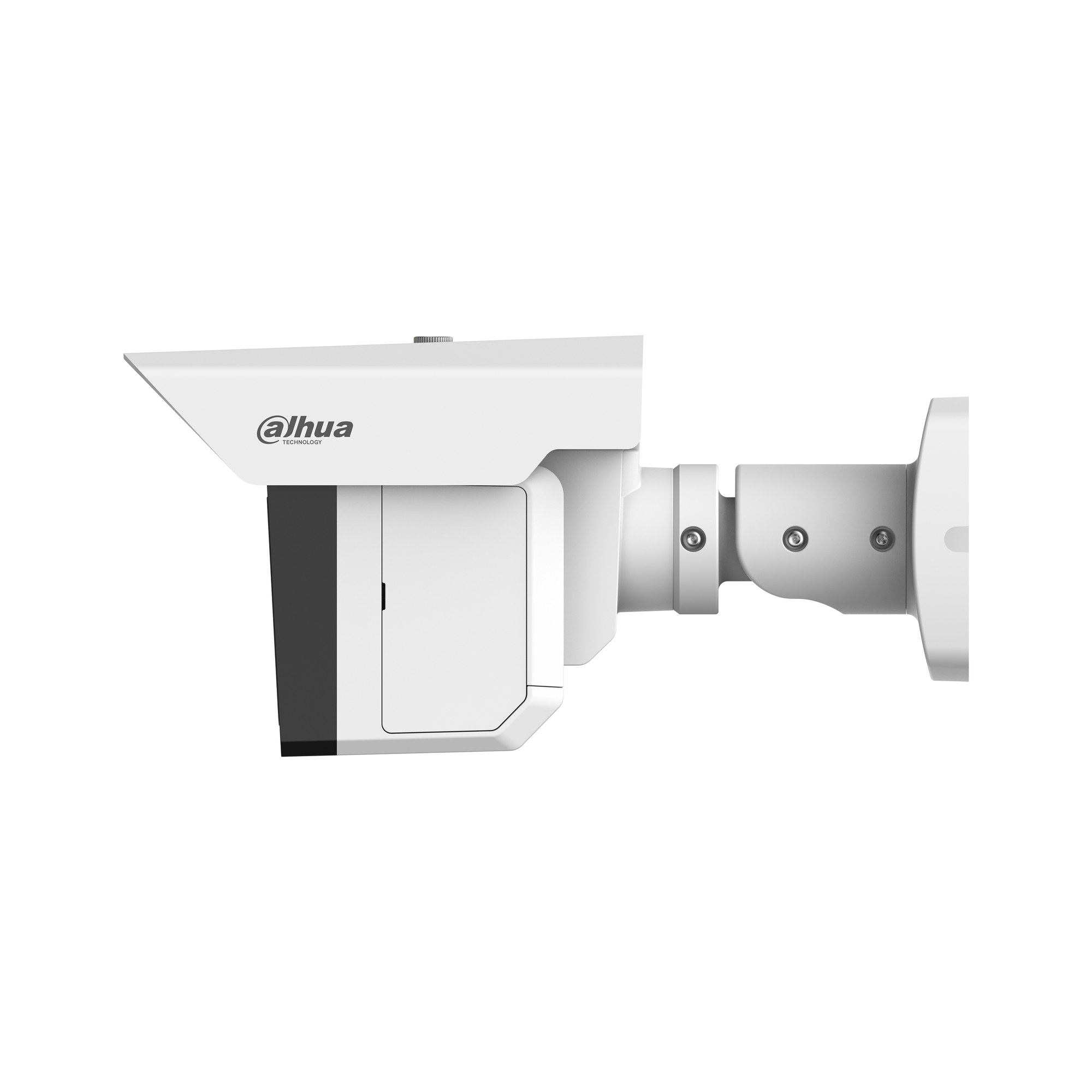

Dahua IPC-MFW5241T2-E3-ASE 3x2MP Multivision Perimeter IP Bullet Camera – WizMind Triple-Sight
€849.40
Product "Dahua IPC-MFW5241T2-E3-ASE 3x2MP Multivision Perimeter IP Bullet Camera – WizMind Triple-Sight"
Dahua IPC-MFW5241T2-E3-ASE is a WizMind Triple-Sight long-range perimeter camera featuring three independent 2MP sensors and lenses operating simultaneously in a single housing – a 3.6mm wide-angle, a 12mm mid-range and a 25mm long-range lens. All three channels monitor the same area at the same time from different distances, detecting people and vehicles up to 100 metres away with high accuracy.
Key Advantages and Features:
- Three sensors, three views at once: Triple-Sight technology: 3.6mm (wide), 12mm (mid-range) and 25mm (long-range) lenses monitor the same area simultaneously from different distances, all from one housing.
- Long-range perimeter protection up to 100m: Multi-channel fusion and AI accurately detect people and vehicles up to 100 metres away while filtering out false alarms.
- Illumination by Area: 8 IR LEDs illuminate up to 100 m; the lit area can be split into 6 independently controlled zones to save power and reduce light spill.
- Micro-PTZ and gradienter: Fine three-axis adjustment plus a built-in level gauge simplify precise installation and setup.
- Two-way audio: Built-in high-sensitivity microphone and powerful speaker enable two-way communication via the mobile app.
- IP67 and IK10 protection: Dust-, water- and vandal-resistant metal housing withstands harsh outdoor conditions.
- ePoE long-distance power: Supports extended-range PoE, simplifying cable-run planning.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Sensor | 3x 1/2.8" CMOS (channel 1-3), each max 1920×1080 |
| Lens | Fixed, channel 1: 3.6mm F1.6 (100.4°); channel 2: 12mm F2.0 (29.5°); channel 3: 25mm F2.8 (14.9°) |
| Light sensitivity | Channel 1: 0.0007 lux; channel 2: 0.004 lux; channel 3: 0.008 lux (Color, 30 IRE); 0 lux (illuminator on) |
| Night vision | 8 IR LEDs, up to 100 m, Illumination by Area (6 zones), Micro-PTZ adjustment |
| WDR | DWDR |
| Resolution & FPS | Channel 1-3 main stream 1920×1080@25fps, sub stream 704×576@25fps; 2 streams per channel |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream) |
| AI analytics | IVS perimeter protection: intrusion, tripwire (human/vehicle classification), AI-ISP, Smart Search |
| Audio | Built-in dual microphone and speaker, two-way talk; G.711a, G.711Mu, PCM, G.726, G.723 |
| Alarm | 2 in, 2 out; RS-485 |
| Storage | MicroSD up to 1TB; FTP/SFTP/NAS |
| Protocols | ONVIF Profile S/G/T/M, IPv4/IPv6, RTSP, RTMP, RJ-45 10/100 |
| Dimensions | 278.6 mm × 124.0 mm × 140.4 mm |
| Weight | Net 2.4 kg, gross 3.06 kg |
| Housing material | Metal, IP67, IK10 |
| Network interface | RJ-45 (10/100 Base-T), ePoE |
| Power supply/consumption | 12 VDC (±30%), PoE+ (802.3at) or ePoE; basic 4.3W/5.5W, max 22.1W/23.6W |
Best suited for: the IPC-MFW5241T2-E3-ASE is a great fit for long-range perimeter monitoring of large industrial sites, warehouses and facility boundaries, where both near and far coverage is needed at once without deploying multiple separate cameras.
* Note: the camera supports on-board recording to a MicroSD card (up to 1TB); for continuous recording and management a separate NVR or VMS is recommended.
| Body colour: | White |
|---|---|
| Body type: | Bullet camera |
| Lens: | Fixed |
| Series: | WizMind |
