Dahua ART-ARC3800H-03-FW2(868) Wireless 4G Alarm Kit

Product "Dahua ART-ARC3800H-03-FW2(868) Wireless 4G Alarm Kit"

Dahua ART-ARC3800H-03-FW2(868) is an AirShield wireless alarm starter kit with the ARC3800H-FW2(868) hub (Hub2), a PIR motion detector, a door/window detector and a keyfob. The hub connects to the internet over Ethernet, Wi-Fi and cellular (4G/3G/2G), and you run the system from the DMSS app.

The door/window detector is for non-metal doors and windows only. Two-way talk needs a separate ARA14-W2 intercom siren. Wi-Fi is 2.4 GHz only.

Key Advantages and Features:

  • Everything to start in one box: Hub, PIR motion detector, door/window detector and 4-button keyfob (Home, Away, Disarm, SOS).
  • Hub2: Up to 150 peripherals (64 keyfobs, 8 keypads, 6 sirens, 4 repeaters, 64 PIR cameras), 32 areas and up to 8 IP cameras for alarm video.
  • Three communication paths: Ethernet, Wi-Fi (2.4 GHz) and 4G/3G/2G cellular; two SIM slots, one active at a time. Notifications by app, SMS and voice call.
  • PIR detector: Dual-element PIR, 12 m / 90° (at 2.2 m mounting height), 3 sensitivity levels, pet immune up to 18 kg.
  • Door/window detector: Reed-switch magnetic contact, magnet gap under 40 mm; both detectors also report room temperature.
  • Reliable radio link: Two-way 868 MHz link with frequency hopping and AES128; hub up to 2000 m, PIR 1600 m, door detector 1200 m, keyfob 900 m in open space.
  • Backup power and long battery life: 4750 mAh lithium battery in the hub (up to 12 h); detector batteries last up to 4 years, the keyfob up to 3 years.

Technical Specifications:

ParameterSpecification
Kit contentsARC3800H-FW2(868) hub, PIR motion detector, door/window detector, keyfob
Hub capacityup to 150 peripherals, 32 areas, up to 8 IP cameras
Hub communication1 × RJ-45 10/100 Mbps, Wi-Fi 802.11b/g/n (2.4 GHz), 4G/3G/2G (2 SIM slots, 1 active)
NotificationsDMSS / DoLynk Care, SMS, voice call; SIA, SoftGuard
PIR detector12 m / 90°, 3 sensitivity levels, pet immune ≤ 18 kg, 0.3–3 m/s
Door/window detectorreed switch, magnet gap < 40 mm; non-metal doors and windows
Keyfob4 buttons: Home, Away, Disarm, SOS
Radio868.0–868.6 MHz, two-way, frequency hopping, AES128
Radio range (open space)hub 2000 m, PIR 1600 m, door detector 1200 m, keyfob 900 m
Certificationshub CE; detectors and keyfob EN 50131 Grade 2, Environmental Class II
Power supplyhub 100–240 V AC + 4750 mAh battery (up to 12 h); detectors CR123A (up to 4 yrs); keyfob CR2032 (up to 3 yrs)
Operating temperature−10…+55 °C, indoor
Dimensionshub 174.8 × 174.8 × 38.3 mm; PIR 104 × 60 × 50 mm; door detector 100.2 × 20.8 × 20.3 mm; keyfob 60 × 39.5 × 15 mm
Weighthub 510 g, PIR 100 g, door detector 70 g, keyfob 20 g; kit packed 1.46 kg

Suited to starting an alarm system for a home, flat, shop or small office where you also want a cellular backup; you can add more devices later.

Properties "Dahua ART-ARC3800H-03-FW2(868) Wireless 4G Alarm Kit"
Alarm device type: Kit
Connection: IP, Wi-Fi
Placement: Indoor
System: Wireless
Datasheets
Datasheet (PDF)

Oops! Your browser doesn't support PDFs!

Manufacturer "Dahua"

Dahua Technology – Enabling a Safer Society and Smarter Living

Dahua Technology is a world-leading video-centric AIoT (Artificial Intelligence of Things) solution and service provider. Dedicated to technological innovation, Dahua offers reliable security systems and smart video solutions tailored for residential users, commercial enterprises, and the public sector alike.

Why Choose Dahua?

  • Cutting-Edge Innovation: Dahua invests heavily in Research & Development (R&D) each year, consistently bringing highly accurate AI-driven video surveillance technology to the global market.

  • Comprehensive Security Ecosystem: Their extensive product portfolio includes high-resolution IP and analog cameras, smart video recorders, access control systems, video intercoms, intrusion alarms, and smart home solutions.

  • Proven Global Reliability: Trusted in over 180 countries, Dahua products are renowned for their exceptional build quality, outstanding image clarity, and user-friendly operation.

Through continuous innovation and world-class video technology, Dahua helps create a safer environment and streamlines daily operations for businesses and communities worldwide.

Videovalve is Dahua's official distributor in Estonia. See Dahua's official partner list (dahuasecurity.com)

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

Sobivad tarvikud

> 10 available
Dahua ARA13-W2(868) Wireless outdoor siren
ARA13-W2(868)(Red)
Dahua ARA13-W2(868) Wireless Outdoor Siren, red strobe

Regular price: €128.96
Excl. VAT: €104.00
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Only 2 available
Dahua ARA24-W2(868) Wireless keyfob
ARA24-W2(868)
Dahua ARA24-W2(868) Wireless Keyfob

Regular price: €37.20
Excl. VAT: €30.00
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Sold out
Dahua ARA12-W2(868) WirelessIindoor Siren
ARA12-W2(868)
Dahua ARA12-W2(868) Wireless Indoor Siren

Regular price: €71.92
Excl. VAT: €58.00
> 10 available
Dahua ARD1233-W2(868) Wireless PIR detector
ARD1233-W2(868)
Dahua ARD1233-W2(868) Wireless PIR Detector, pet immune

Regular price: €66.96
Excl. VAT: €54.00
Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Sold out
Dahua ARD821-W2(868) Wireless Panic Button
ARD821-W2(868)(With strap)
Dahua ARD821-W2(868) Wireless Panic Button with strap

Regular price: €35.96
Excl. VAT: €29.00
Sold out
Dahua ARD323-W2(868S) Wireless door detector
ARD323-W2(868S)
Dahua ARD323-W2(868S) Wireless Door Detector (small magnet)

Regular price: €45.88
Excl. VAT: €37.00
> 10 available

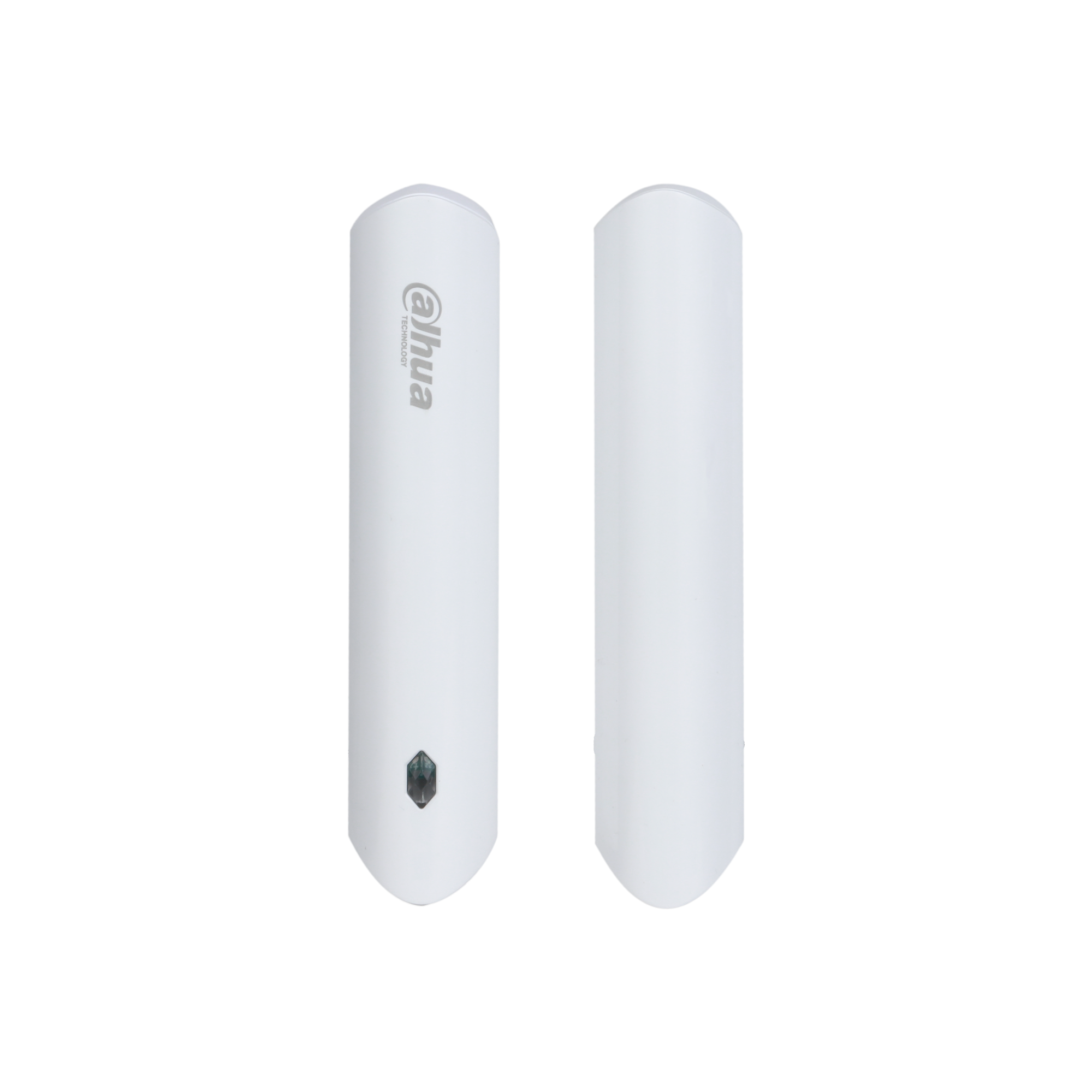

Dahua ARD324-W2(868) Wireless Door Detector Plus
