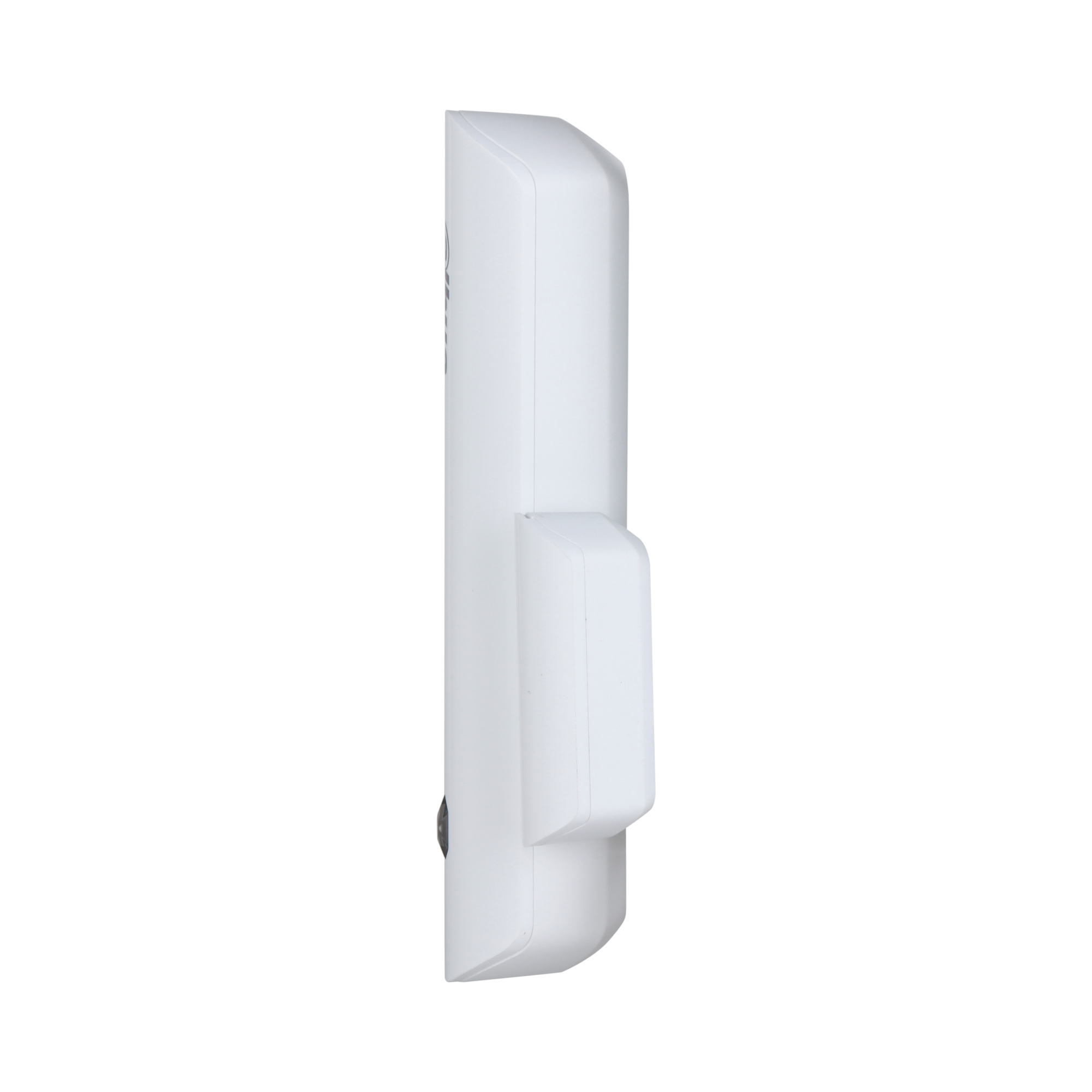

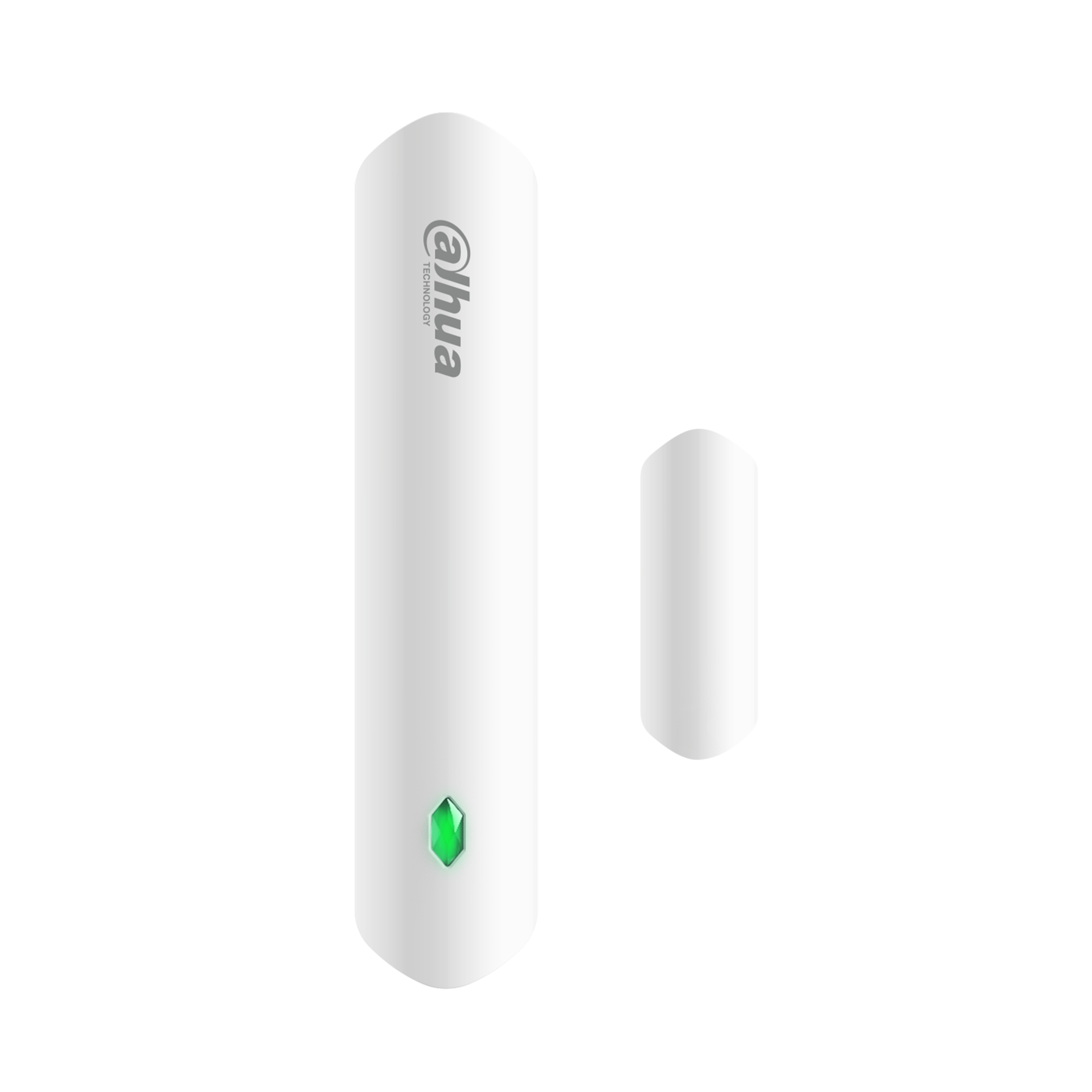

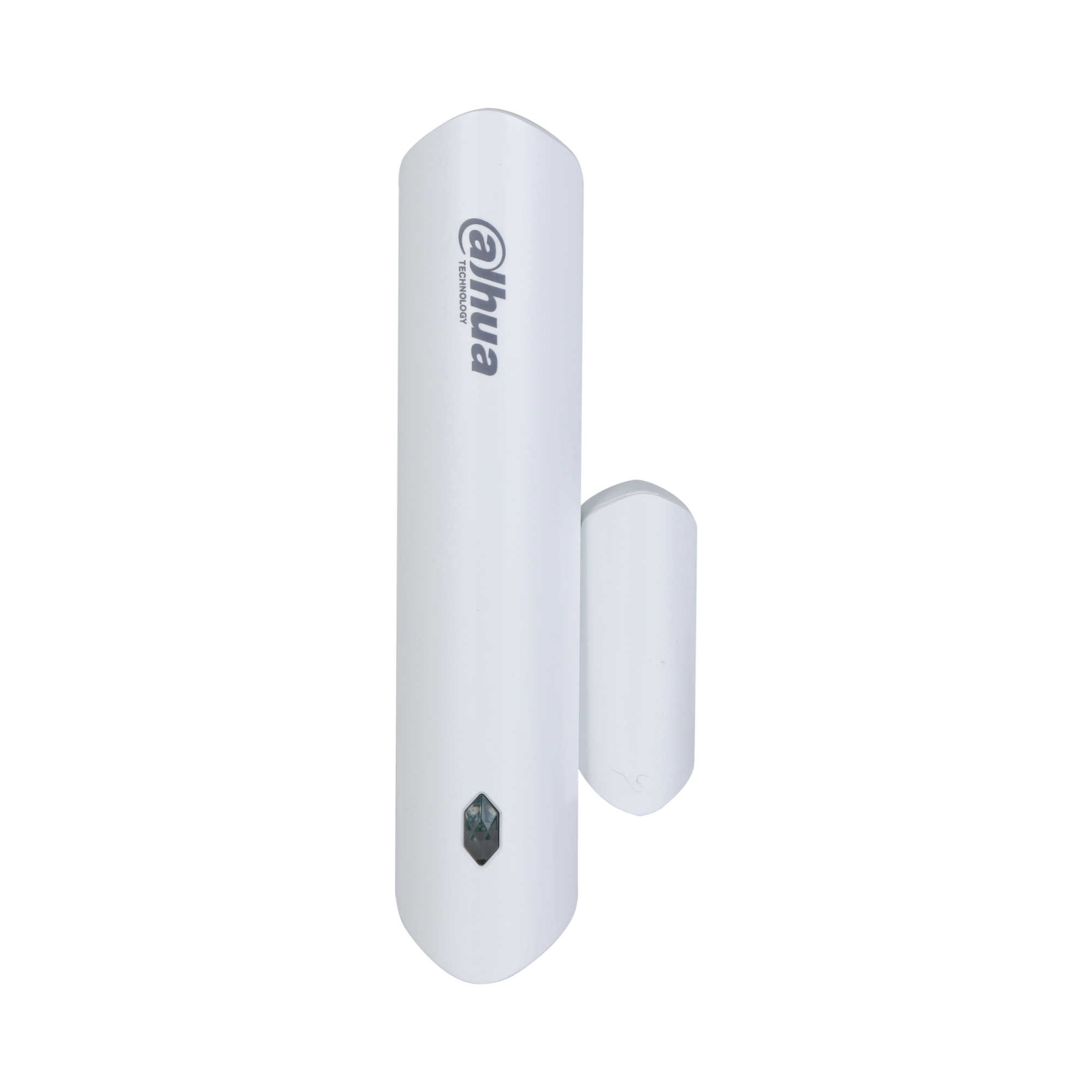

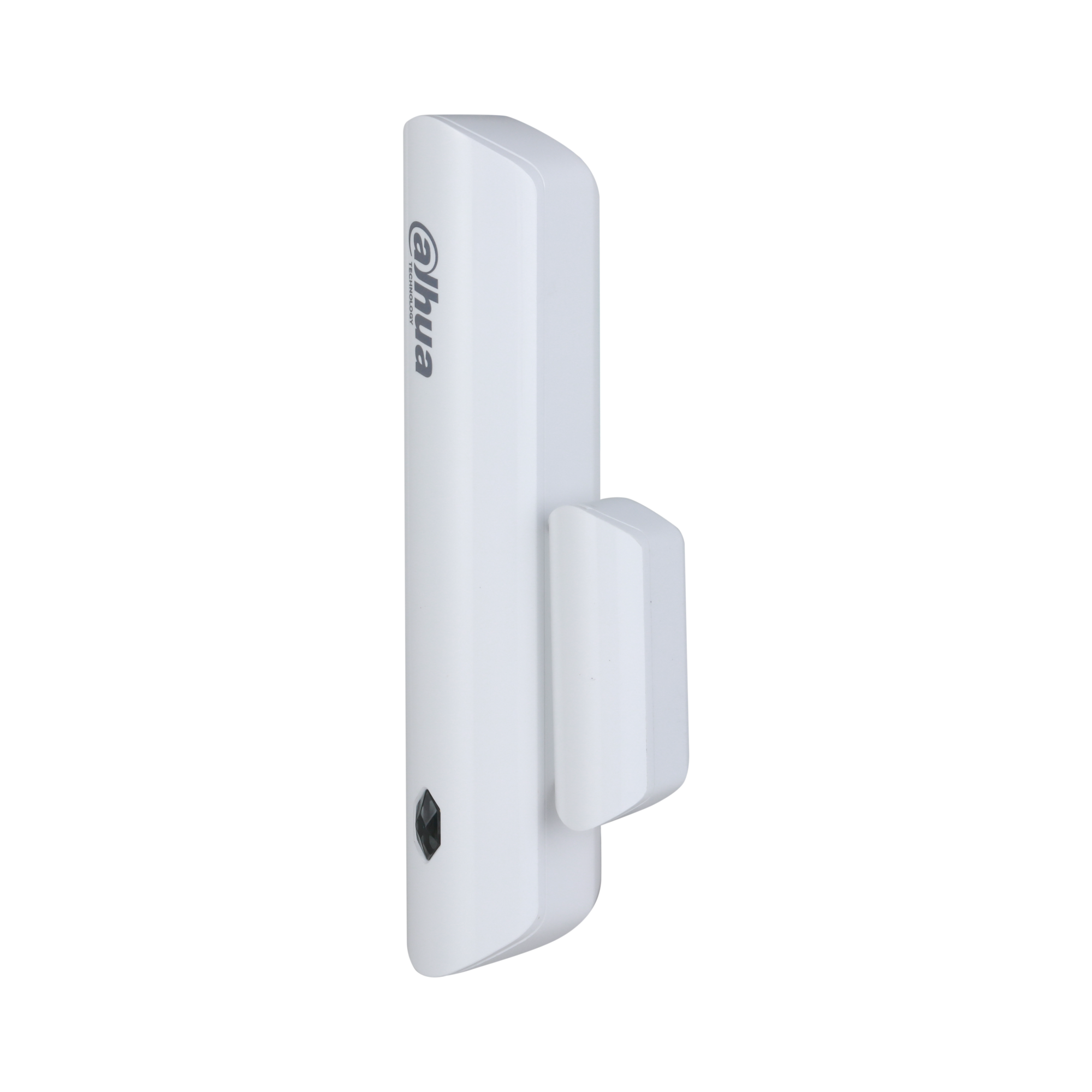

Dahua ARD324-W2(868S) Wireless Door Detector Plus

Product "Dahua ARD324-W2(868S) Wireless Door Detector Plus"

Dahua ARD324-W2(868S) is an AirShield wireless door/window detector Plus that detects shock and tilt as well as opening – so you get an alarm as soon as someone tries to break or pry a window. It also measures room temperature and has a wired input for one more detector.

For non-metal doors and windows only. Requires a Dahua AirShield 868 MHz hub.

Key Advantages and Features:

  • Opening, shock and tilt: Reed-switch magnetic contact and a 3-axis accelerometer in one device.
  • Adjustable shock sensitivity: Three levels: high, normal and low.
  • Tilt detection: Alarm when the window or door tilts by up to 25°.
  • Wired auxiliary input: 1 external input (NC, NO or pulse count) for another detector.
  • Temperature: Measures room temperature (−15…+65 °C, ±1 °C) and raises an overheating alarm.
  • Secure radio link: Two-way 868 MHz with frequency hopping, AES128 encryption and jamming detection, up to 1200 m in open space.
  • Cloud update and tamper protection: Firmware updates over the cloud; tamper switch and low-battery warning.

Technical Specifications:

ParameterSpecification
Sensor3-axis accelerometer + reed switch
Opening detectionmagnet gap < 40 mm
Shock detectionhigh / normal / low
Tilt detectionup to 25°
External input1 (NC / NO / pulse count)
Temperature measurement−15…+65 °C, accuracy ±1 °C
Tamperyes
Radio868.0–868.6 MHz, two-way, frequency hopping, AES128
Radio rangeup to 1200 m in open space
CertificationsCE, EN 50131 Grade 2, Environmental Class II
Power supply1 × CR123A
Battery life3 yrs (external input NO) / 1.5 yrs (external input NC), triggered twice a day
Operating temperature−10…+55 °C, indoor
Installationbracket mount; non-metal doors and windows
Dimensions100.2 × 20.8 × 20.3 mm
Weight70 g (115 g packed)

Suited to protecting doors and windows in a Dahua AirShield system when you want an alarm on a break-in or prying attempt, not only on opening.

Properties "Dahua ARD324-W2(868S) Wireless Door Detector Plus"
Alarm device type: Sensor
Placement: Indoor
System: Wireless
Datasheets
Datasheet (PDF)

Oops! Your browser doesn't support PDFs!

Manufacturer "Dahua"

Dahua Technology – Enabling a Safer Society and Smarter Living

Dahua Technology is a world-leading video-centric AIoT (Artificial Intelligence of Things) solution and service provider. Dedicated to technological innovation, Dahua offers reliable security systems and smart video solutions tailored for residential users, commercial enterprises, and the public sector alike.

Why Choose Dahua?

  • Cutting-Edge Innovation: Dahua invests heavily in Research & Development (R&D) each year, consistently bringing highly accurate AI-driven video surveillance technology to the global market.

  • Comprehensive Security Ecosystem: Their extensive product portfolio includes high-resolution IP and analog cameras, smart video recorders, access control systems, video intercoms, intrusion alarms, and smart home solutions.

  • Proven Global Reliability: Trusted in over 180 countries, Dahua products are renowned for their exceptional build quality, outstanding image clarity, and user-friendly operation.

Through continuous innovation and world-class video technology, Dahua helps create a safer environment and streamlines daily operations for businesses and communities worldwide.

Videovalve is Dahua's official distributor in Estonia. See Dahua's official partner list (dahuasecurity.com)

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

Sobivad tarvikud

Sold out
Dahua ARC3000H juhtmevaba valvesüsteemi keskseade
ARC3000H-GW2(868)
Dahua ARC3000H-GW2(868) Wireless Alarm Hub, 2G

Regular price: €246.76
Excl. VAT: €199.00
Sold out
Dahua ARC3000H juhtmevaba valvesüsteemi keskseade
ARC3000H-FW2(868)
Dahua ARC3000H-FW2(868) Wireless Alarm Hub, 4G

Regular price: €321.16
Excl. VAT: €259.00
> 10 available
Dahua ARC3800H juhtmevaba valvesüsteemi keskseade
ARC3800H-FW2(868)

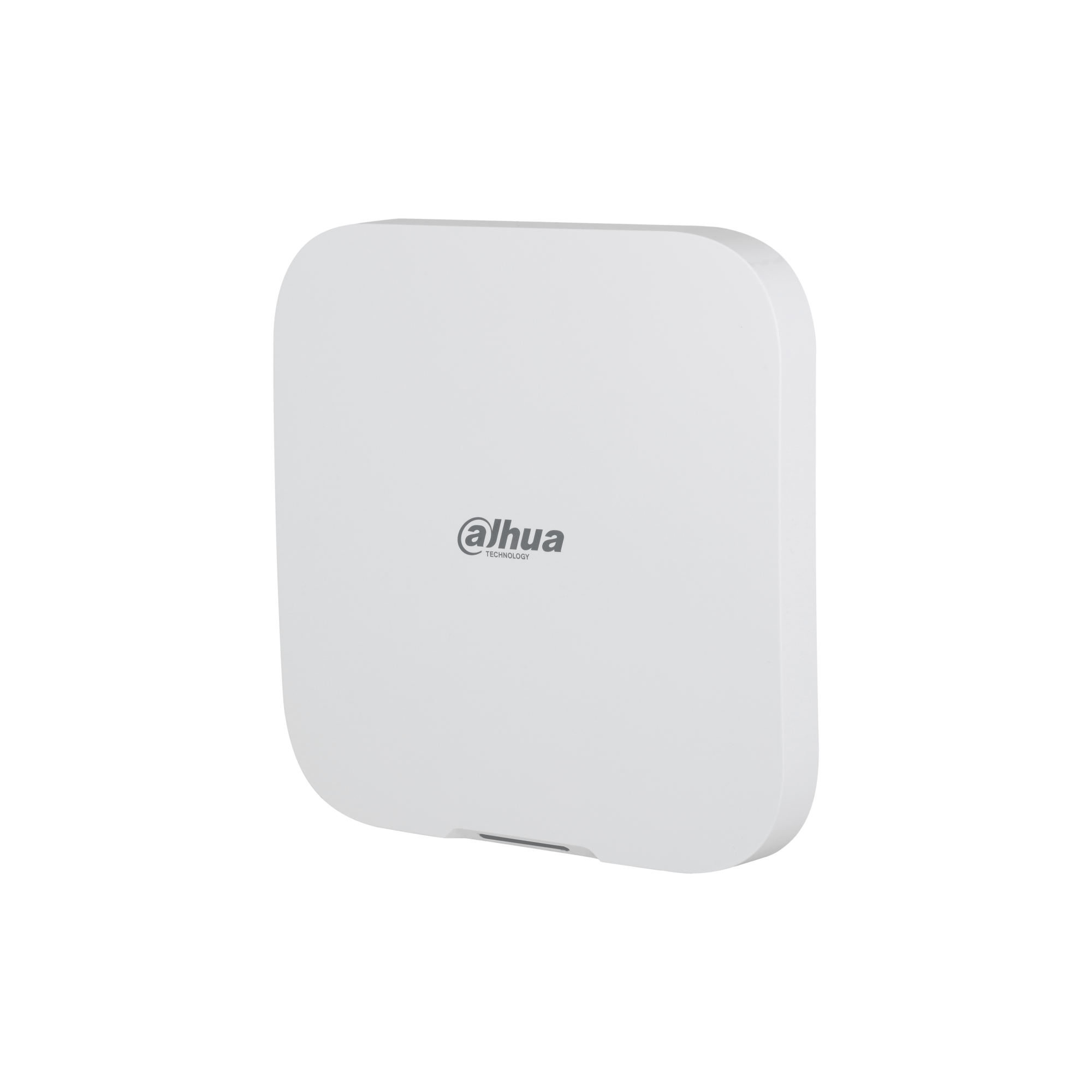

Dahua ARC3800H-FW2(868) Wireless Alarm Hub 2, 4G
