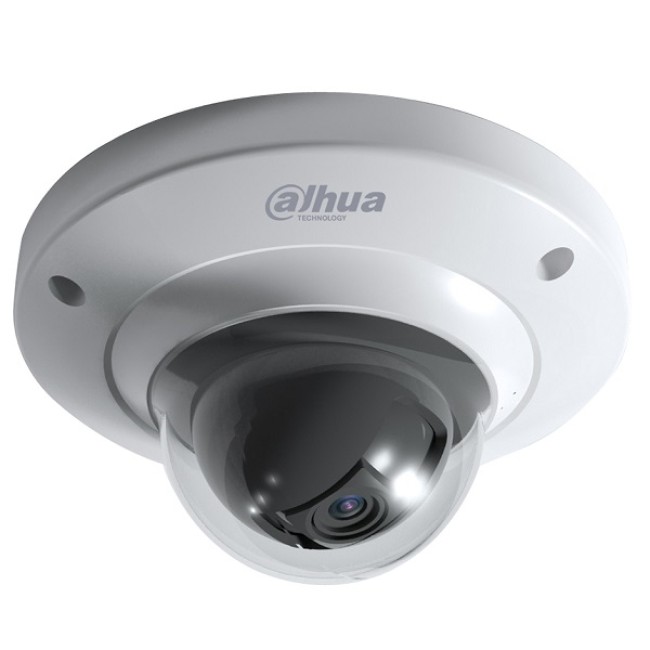

Dahua 2MP minidome, 2.8mm, 0.1Lux , 1/3

Tehnilised omadused

Kaamera

• 1/3” 2megapixel Progressive CMOS
• 2048(H)x1536(V); 25fps@1080P(1920×1080)
• Shutter Speed - Auto/Manual,1/3 (4) ~1/10000s
• Color 0.1LUX/F1.2
• S/N Ratio >50dB
• Day/Night - Auto(Electronic) / Color / B/W
• Backlight Compensation - BLC / HLC / DWDR
• Noise Reduction - 2D
• AWB, AGC
• Privacy Masking - 4 areas

Video

• Compression - H.264 / MJPEG dual-stream
• Main Stream 1080P / 720P(1 ~ 25fps)
• Sub Stream D1/CIF(1 ~ 25fps)
• Resolution - 1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576/704× 480) / CIF(352× 288/352× 240)
• Bit Rate H.264 - 32K ~ 8192Kbps; MJPEG - 32K ~ 20480Kbps; Max 25fps@1080P

Audio

• N/A

Objektiiv

• 2.8mm, F1.8
• H:89.8°

Võrk

• RJ-45 (10/100Base-T)
• IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• ONVIF Profile S
• Max User Access - 20
• Smart Phone - iPhone, iPad, Android, Windows Phone
• Web viewer, CMS (DSS/PSS) & DMSS; Smart PSS - Windows & Mac

Ühendused

• Video out - N/A
• MicroSD - N/A
• Alarm - N/A
• Audio - N/A
• RS-485 - N/A

Toide

• DC12V, 2W
• PoE(802.3af)

Füüsilised parameetrid

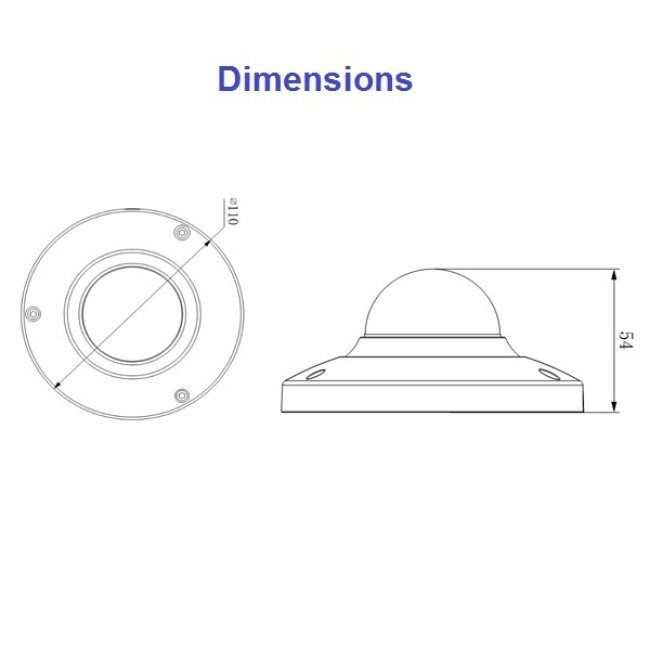

• 110mm × 54mm
• -30°C~+60°C, <95%
• 0.25kg
